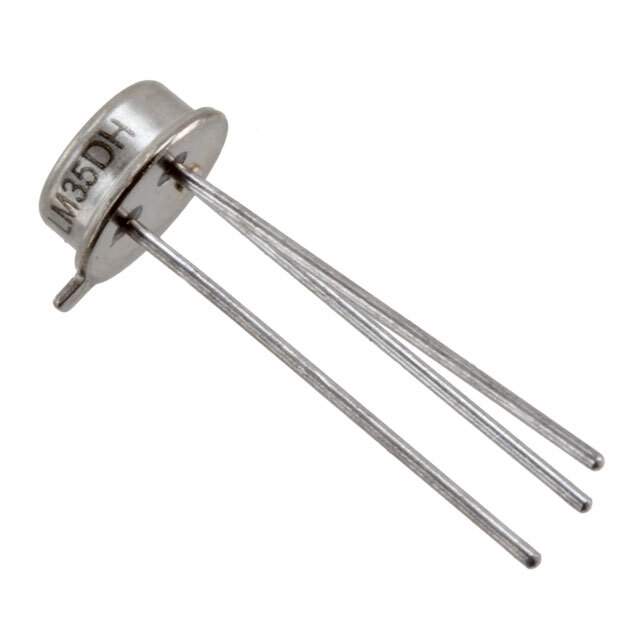

LM35AH Real Image
Same model may have multiple batches, images only for reference.

LM35AH

Part No LM35AH
Manufacturer Texas Instruments
Catalog Temperature Sensors - Analog and Digital Output
Description SENSOR TEMP ANLG VOLT TO (NDT)
Datasheet
LM35AH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Texas Instruments
Packaging Bulk
Status Active
Sensor Type Analog, Local
Sensing Temperature - Local -55°C to 150°C
Output Type Analog Voltage
Supply Voltage - Operating 4 V to 30 V
Resolution 10mV/°C
Accuracy - Highest (Lowest) ±0.5°C (±1°C)
Testing Conditions 25°C (-55°C to 150°C)
Temperature Range - Operating -55°C to 150°C
Mounting Through Hole
Case / Package TO (NDT)
Win Source Part Number 019172-LM35AH
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Defence, Military & Aerospace
Ultra Librarian 3D Model Ultra Librarian LM35AH CAD Model

Description

The LM35AH is a high-performance temperature sensor product from the globally renowned technology company, Texas Instruments.

  • Output: 10mV per degree Celsius temperature change
  • Accuracy: ±0.5°C @ room temperature and ±0.75°C over a full -55°C to 150°C temperature range
  • Power Supply Range: 4V to 30V
  • Current Draw: Approximately 60µA
  • Calibration: Directly in Celsius (Centigrade)
  • Scale Factor: Linear + 10.0 mV/°C
  • Package: TO-46 metal can
