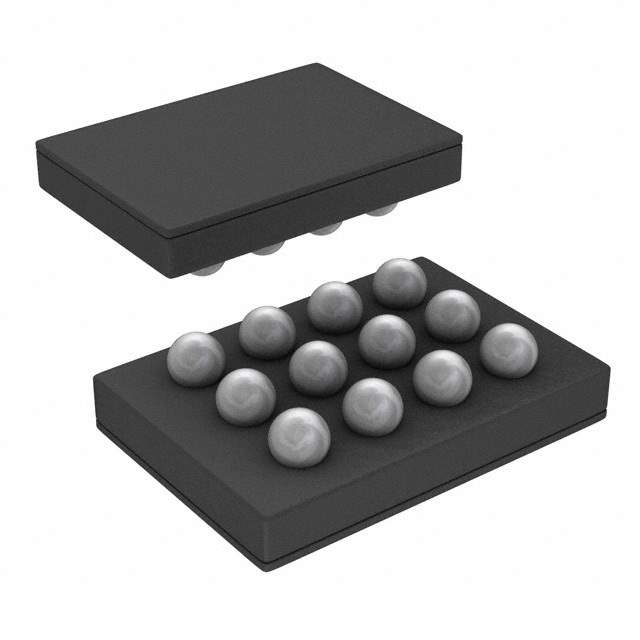

The LM3686TLE-AADW/NOPB is a dual output, fast response, high-accuracy integrated power solution from Texas Instruments. Designed to meet the rigorous power management requirements of modern portable devices, this compact power management integrated circuit (PMIC) offers two high-efficiency step-down DC-DC converters in a single package.

Key Features

• Integrated Dual Channel: The LM3686TLE-AADW/NOPB features two independent step-down voltage regulators that can supply up to 600mA (Channel 1) and 400mA (Channel 2) of output current, respectively.
• High Efficiency: With a switching frequency of 2MHz, this device allows for the use of tiny surface-mount inductors and capacitors, resulting in a small overall footprint and reduced noise susceptibility.
• Adjustable Output Voltage: The output voltage is adjustable and can be set to meet the specific needs of the application, ensuring compatibility with a wide range of devices.
• Low Quiescent Current: The low quiescent current of the LM3686TLE-AADW/NOPB helps prolong battery life in portable applications.
• Thermal Shutdown Protection: The device includes thermal shutdown protection to safeguard against overheating, enhancing the reliability and longevity of the application.

Applications

The LM3686TLE-AADW/NOPB is ideal for a variety of portable devices where efficient power management is crucial. These applications include but are not limited to:

• Smartphones and Tablets
• Wireless Modems and Routers
• Portable Media Players
• Handheld GPS Units
• Digital Cameras and Camcorders

Environmental & Quality Certifications

The LM3686TLE-AADW/NOPB is available in a lead-free, environmentally friendly package and is compliant with RoHS standards. It is also part of Texas Instruments' NOPB (No Lead (Pb)) series of products, indicating a commitment to reducing environmental impact.

Conclusion

With its dual-channel configuration, high efficiency, and adjustable output, the LM3686TLE-AADW/NOPB from Texas Instruments is a versatile and dependable choice for designers looking to optimize power management in compact, battery-powered devices.
