Product Overview: LM3940LD-3.3/NOPB

The LM3940LD-3.3/NOPB is a highly efficient, low-dropout (LDO) voltage regulator designed and manufactured by Texas Instruments (TI). This regulator is specifically engineered to convert a higher input voltage to a lower output voltage with a minimal voltage drop between the input and output, making it ideal for a wide range of applications, including consumer electronics, embedded systems, and portable devices.

Key Features

• Output Voltage: The device provides a fixed output voltage of 3.3V, which is a common requirement for many digital circuits and microcontroller-based systems.
• Input Voltage Range: It operates over an input voltage range from 4.5V to 7V, allowing for versatility in different power supply configurations.
• Current Capacity: The LM3940LD-3.3/NOPB is capable of delivering up to 1A of continuous output current, sufficient for a variety of moderate power demands.
• Low Dropout: With its low dropout performance, the device maintains regulation with a minimal difference between the input and output voltages, which is beneficial for battery-powered applications where maximizing efficiency is crucial.
• Thermal Shutdown and Current Limit: Built-in protection features include thermal shutdown and current limit, safeguarding the device and the system against excessive temperature and current conditions.

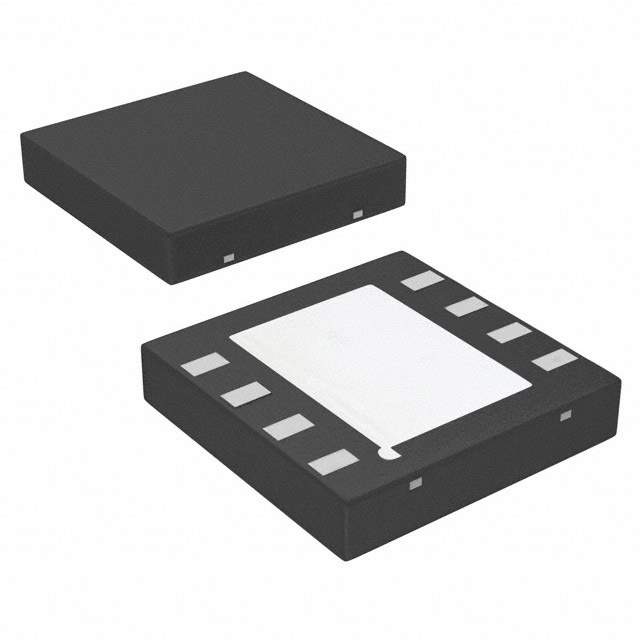

• Package: The regulator is available in a compact, surface-mountable LLP package, which is suitable for space-constrained applications.
• Lead-Free and RoHS Compliant: The NOPB designation indicates that the device is lead-free and RoHS compliant, making it suitable for use in environmentally sensitive applications.

Applications

The LM3940LD-3.3/NOPB is a versatile component that can be used in a variety of electronic devices. Some common applications include:

• Power supply circuits for microcontrollers and digital systems
• Portable and battery-operated devices
• Peripheral power supplies for computers and networking equipment
• Linear power regulators for embedded systems

With its reliable performance and robust protection features, the LM3940LD-3.3/NOPB from Texas Instruments is an excellent choice for designers looking for a stable and efficient power management solution.
