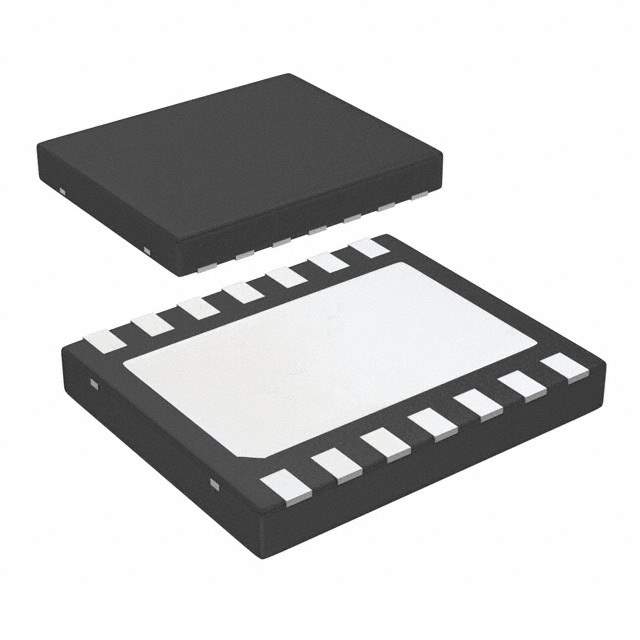

LM4680SDX Real Image
Same model may have multiple batches, images only for reference.

LM4680SDX

Part No LM4680SDX
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Audio
Description IC AMP AUDIO PWR 10W MONO 14VSON
Datasheet
LM4680SDX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Type Class D
Output Type 1-Channel (Mono)
Max Output Power x Channels @ Load 10W x 1 @ 8 Ohm
Supply Voltage - Operating 9 V to 14 V
Features Depop, Short-Circuit and Thermal Protection, Shutdown
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 14-VSON (5x6)
Dimension 14-VDFN Exposed Pad
Win Source Part Number 088077-LM4680SDX
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM4680SDX CAD Model

Description

The LM4680SDX is an innovative product from Texas Instruments, a renowned global semiconductor company that designs and manufactures a wide range of digital signal processors and analog integrated circuits.

  • Type: Stereo Class-D audio amplifier
  • Operating Voltage: Single supply voltage from 2.4V to 5.5V
  • Output Power: 2.5W of continuous average power @ 4Ω load or 1.5W to an 8Ω load from a 5V power supply
  • Modulation Scheme: Advanced modulation scheme that eliminates the output filter
  • Features: Integrated volume control that provides a 32-step volume range with mute function
  • Protection: Thermal shutdown protection, under voltage lockout and short circuit protection
  • Package: Compact 14-pin NSOIC package
