Product Overview: Texas Instruments LM4765T/NOPB

The LM4765T/NOPB is a high-fidelity audio power amplifier integrated circuit produced by Texas Instruments (TI). This advanced utility IC is designed to deliver a remarkable audio experience with its dual-channel capability, making it an ideal choice for stereo systems. The LM4765T/NOPB operates in a split supply configuration and can deliver 30 watts per channel of continuous average output power into an 8-ohm load with less than 0.1% THD+N from 20Hz to 20kHz.

Featuring TI's acclaimed SPiKe™ Protection, the LM4765T/NOPB ensures a safeguard against over-voltage, under-voltage, overloads, shorts to the supplies or ground, thermal runaway, and instantaneous temperature peaks. This protection circuitry enables the device to operate reliably over a wide range of supply voltages and environmental conditions. Additionally, the integrated mute function allows for a pop-free turn on and off, which enhances the user experience by eliminating unwanted noise.

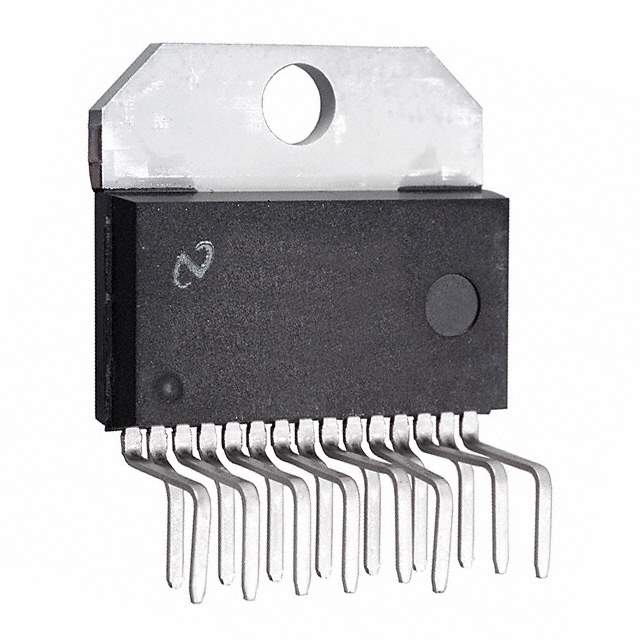

The LM4765T/NOPB comes in a TO-220 package, which is well-suited for applications requiring enhanced thermal performance and ease of mounting. With its non-isolated tab, it is straightforward to attach to a heatsink for improved thermal dissipation, which is crucial for maintaining stability and longevity when driving heavy loads or operating in high-temperature environments.

Key features of the LM4765T/NOPB include:

• Output power of 30W per channel into 8 ohms
• Low total harmonic distortion plus noise (THD+N)
• SPiKe Protection for enhanced reliability
• Mute function for noise-free power cycling
• Wide supply range for flexible use in various applications

This audio amplifier IC is perfect for high-end stereo TVs, mini component stereo systems, home theater systems, and active speaker systems. Its high-quality sound reproduction and robust protection features make it a reliable and preferred choice for audiophiles and electronic enthusiasts looking to build or upgrade their audio equipment.

Overall, the LM4765T/NOPB by Texas Instruments represents a blend of performance, reliability, and ease of use, making it an excellent building block for any audio amplification project.
