Product Overview: LM73606QRNPTQ1 from Texas Instruments

The LM73606QRNPTQ1 is a robust, automotive-grade synchronous buck converter designed by Texas Instruments (TI) to deliver exceptional performance and reliability for a wide range of applications. This device is specifically engineered to meet the rigorous demands of the automotive industry, offering a compact and energy-efficient solution for power conversion challenges in modern vehicles.

Key Features:

• High-Performance Regulation: The LM73606QRNPTQ1 provides an adjustable output voltage range from 1V to 38V, which can support a variety of loads and applications. Its ability to deliver up to 6A of continuous current makes it suitable for powering complex automotive subsystems.
• Wide Input Voltage Range: This converter operates effectively with an input voltage range of 3.5V to 36V, accommodating the fluctuations commonly found in automotive power systems, including cold-crank and load-dump scenarios.
• Thermal Management: Enhanced thermal performance is achieved through a low RDS(on) integrated high-side and low-side MOSFETs, which minimize power loss and improve efficiency.
• Robust Protection Features: The device includes a suite of safety features such as overcurrent protection, thermal shutdown, and undervoltage lockout, ensuring reliable operation under adverse conditions.
• EMI Compliance: Designed to meet CISPR 25 Class 5 radiated emissions standards, the LM73606QRNPTQ1 helps maintain the integrity of radio and communication equipment within the vehicle.

Applications:

With its durable design and versatile capabilities, the LM73606QRNPTQ1 is ideal for a variety of automotive applications, including infotainment systems, advanced driver assistance systems (ADAS), body control modules, and other power-sensitive automotive subsystems. Its capacity to handle a broad range of power requirements makes it an excellent choice for designers looking to create efficient, reliable, and compact power supply solutions.

Quality and Reliability:

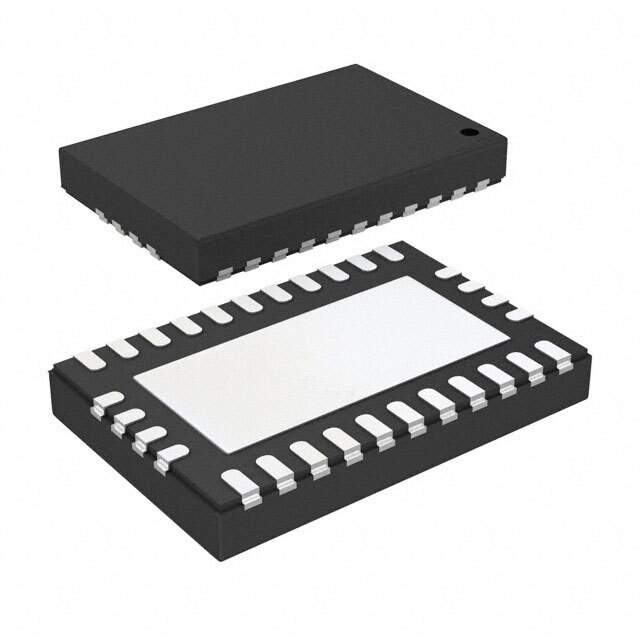

As with all Texas Instruments products, quality and reliability are at the forefront. The LM73606QRNPTQ1 is AEC-Q100 qualified, ensuring it meets the stringent quality standards required for automotive applications. Additionally, it is provided in a wettable flank QFN package, which facilitates the use of automated optical inspection (AOI) techniques to ensure solder joint quality during manufacturing.

Overall, the LM73606QRNPTQ1 from Texas Instruments stands out as a high-performance, reliable, and efficient solution for automotive power conversion, capable of withstanding the harsh conditions of the automotive environment while maintaining a high level of performance.
