The LMH5401IRMST is a top-of-the-line, fully differential amplifier designed by Texas Instruments to cater to a broad spectrum of applications that require high-speed signal processing. This amplifier is well-suited for test and measurement systems, high-speed data acquisition, wireless infrastructure, and a myriad of other applications that demand high performance and reliability.

Key Features

• Wideband Performance: With an impressive gain bandwidth of 6 GHz, this amplifier is capable of handling high-frequency signals with ease, making it ideal for applications that require a wide dynamic range.
• High Linearity: Offering excellent harmonic distortion performance, the LMH5401IRMST ensures signal integrity is maintained even at high frequencies.
• Adjustable Gain: The device provides the flexibility to set the gain externally, which allows users to tailor the amplifier's performance to their specific needs.
• Differential Inputs and Outputs: The fully differential design minimizes common-mode noise and enables the use of differential signaling for improved signal integrity and noise immunity.
• Power Efficiency: Despite its high-speed capabilities, the amplifier operates with a low current consumption, making it an energy-efficient choice for power-sensitive applications.
• Single-Supply Operation: The LMH5401IRMST can operate from a single 5V supply, simplifying power supply design.

Applications

The amplifier's robust design and high-speed characteristics make it an excellent choice for a variety of applications, including:

• High-speed ADC/DAC buffer
• Direct RF down-conversion
• IF sampling with high IF frequencies
• Software-defined radio (SDR)
• High-speed communications systems

Package and Quality

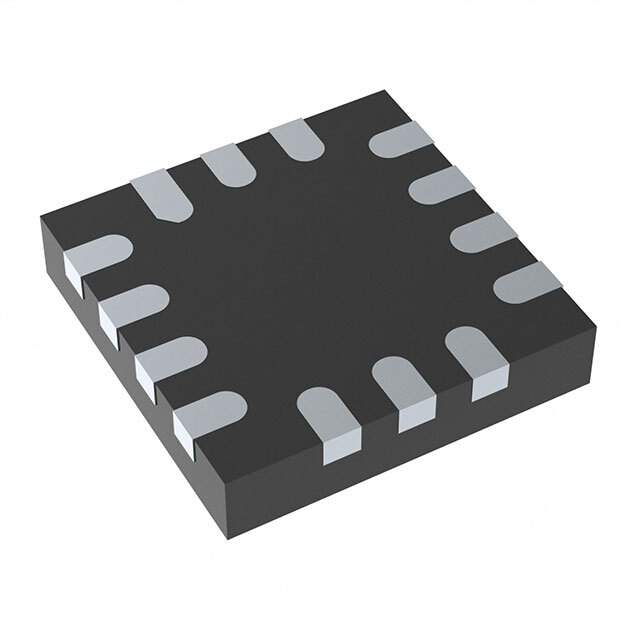

Encased in a compact WQFN-16 package, the LMH5401IRMST is designed for space-constrained applications. The device is also part of Texas Instruments' commitment to quality, ensuring that each unit meets stringent reliability standards for industrial and commercial use.
