The LMH6609MF/NOPB is a high-performance, voltage feedback operational amplifier from Texas Instruments designed to meet the demands of a wide range of applications. This op-amp boasts a high slew rate and low distortion, making it an ideal choice for video and RF signal processing, test equipment, and high-speed communication systems.

Key Features:

• High Speed: With a bandwidth of 900 MHz at a gain of +2, the LMH6609MF/NOPB is capable of handling high-speed signals with ease, ensuring minimal signal degradation.
• Low Distortion: The device offers exceptionally low harmonic distortion, which is critical for maintaining signal integrity in audio and video applications.
• High Output Current: The operational amplifier can deliver an output current of 100 mA, allowing it to drive a wide range of loads.
• Wide Supply Range: It operates over a supply voltage range of 2.7V to 5.5V, making it versatile for both single and dual supply operations.
• Low Power Consumption: Despite its high-speed capabilities, the LMH6609MF/NOPB consumes a low amount of power, which is beneficial for power-sensitive applications.
• Slew Rate: A high slew rate of 1600 V/µs enables the op-amp to respond quickly to changes in the input signal, which is essential for fast signal processing tasks.

Applications:

• Video amplifiers
• Cable drivers
• RF/IF signal processing
• ADC/DAC buffer
• High-speed communication systems
• Test and measurement equipment

Package and Quality:

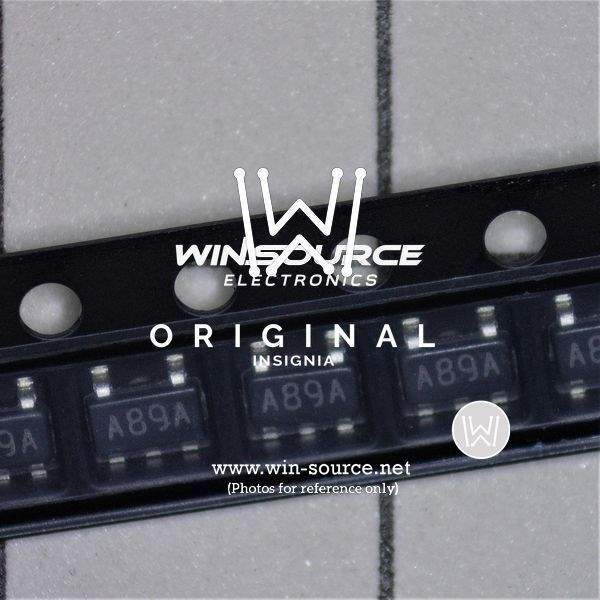

The LMH6609MF/NOPB is available in an SOT-23-5 package, which is compact and suitable for space-constrained applications. The NOPB designation indicates that the product is lead-free and RoHS compliant, reflecting Texas Instruments' commitment to environmental sustainability. The device also features enhanced electrostatic discharge (ESD) protection, ensuring reliability and longevity in various operating conditions.

With its combination of high speed, low distortion, and versatile power supply compatibility, the LMH6609MF/NOPB operational amplifier from Texas Instruments is an excellent choice for designers looking to enhance the performance of their high-speed signal processing systems.
