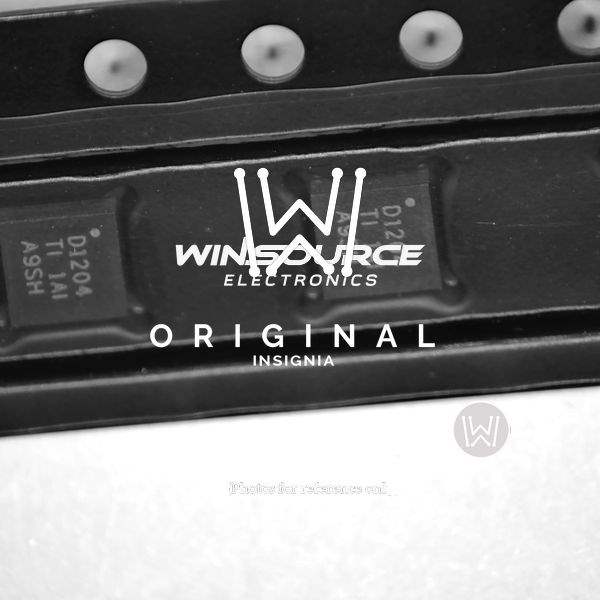

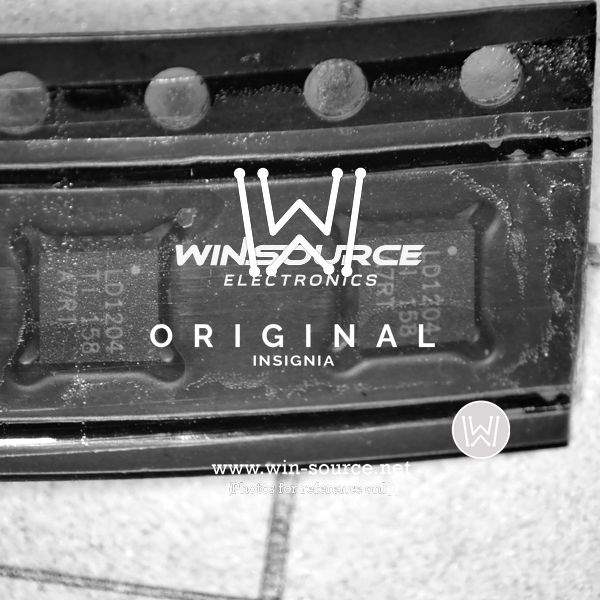

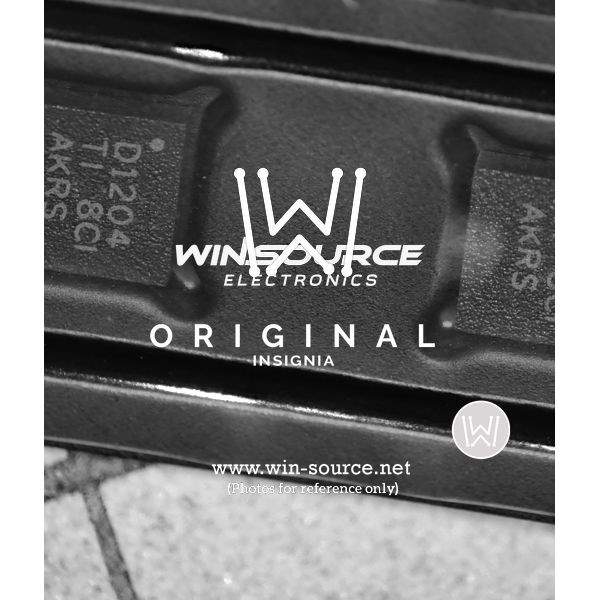

Product Overview: Texas Instruments LMK1D1204RGTR

The LMK1D1204RGTR is a cutting-edge clock buffer from the renowned semiconductor manufacturer Texas Instruments (TI). This device is a part of TI's expansive clock and timing solutions, designed to meet the rigorous demands of modern electronics. It is a highly integrated circuit that offers low-jitter, low-skew, and high-performance clock distribution, making it an ideal choice for a variety of applications, including networking, telecommunications, and high-speed data processing.

Key Features

• Multiple Outputs: The LMK1D1204RGTR provides four low-skew, low-jitter clock outputs, ensuring synchronized distribution of the clock signal to multiple destinations.
• High Performance: With its ability to deliver high-frequency clock signals with minimal signal degradation, this device ensures reliable performance for critical applications.
• Low Power Consumption: Designed for efficiency, the LMK1D1204RGTR operates with a low power draw, making it suitable for power-sensitive designs.
• Small Footprint: Housed in a compact QFN package, the device saves valuable board space and is ideal for space-constrained applications.
• Wide Operating Temperature Range: It can operate over an industrial temperature range, ensuring stability and performance even in extreme conditions.

Applications

The versatile nature of the LMK1D1204RGTR allows it to be used in a wide array of applications. It is particularly well-suited for:

• Networking equipment such as routers, switches, and base stations
• Data centers and server farms requiring precise timing
• Telecommunications infrastructure
• High-speed digital signal processing (DSP) systems
• Complex embedded systems requiring multiple synchronized clock domains

Product Specifications

The LMK1D1204RGTR is available in a 16-pin QFN package and is characterized for operation from -40°C to 85°C. It requires a single power supply, simplifying the power design for system architects. The device also features programmable skew and skew control, which can be tailored to meet the specific needs of the application.

With its robust feature set and Texas Instruments' reputation for quality, the LMK1D1204RGTR is a reliable choice for engineers looking to optimize their clock distribution networks.
