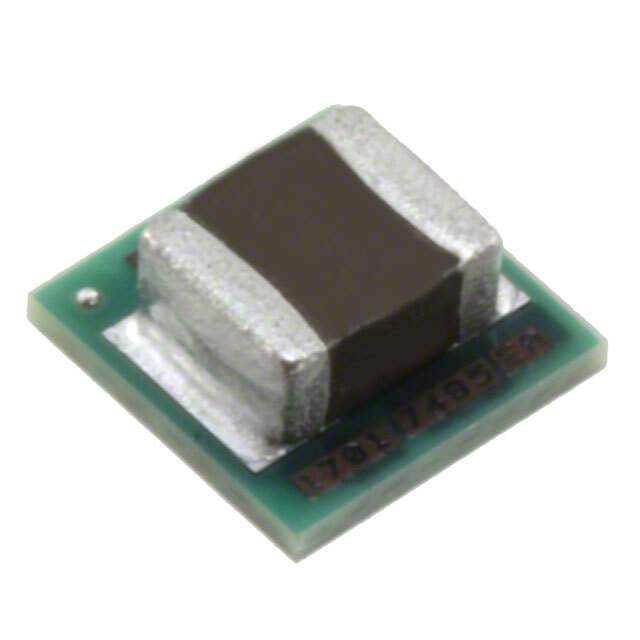

Product Overview: Texas Instruments LMZ21700SILT

The Texas Instruments LMZ21700SILT is a high-efficiency, easy-to-use, nano module power solution that integrates an advanced DC/DC converter with inductors, capacitors, and passive components to provide a compact and reliable power management solution. Designed for space-constrained applications, the LMZ21700SILT offers a significant reduction in design complexity, manufacturing risks, and time-to-market.

Key Features

• Integrated Power Solution: The module combines a DC/DC converter with power inductors, input and output capacitors, and all required passive components into a single package, simplifying the power supply design.
• High Efficiency: With an efficiency of up to 95%, this module is designed to maximize battery life and reduce thermal issues, making it ideal for portable and battery-powered applications.
• Wide Input Voltage Range: The LMZ21700SILT operates over a broad input voltage range from 2.7V to 17V, accommodating a variety of power sources and ensuring flexibility across different system architectures.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to 5.5V, allowing designers to tailor the power supply to the specific needs of their application.
• Compact Footprint: With a small 3.0mm x 3.5mm x 1.41mm package, this power module is perfect for space-constrained applications.
• Low EMI: The LMZ21700SILT is designed to meet EN55022 (CISPR22) Class B radiated and conducted EMI standards, ensuring compliance with regulatory requirements and reducing interference with other electronics.

Applications

The LMZ21700SILT is suitable for a wide range of applications including, but not limited to:

• Point-of-load conversions from 3.3V and 5V rails
• Space-constrained applications such as small form factor and portable devices
• Industrial, communications, and enterprise solutions where power efficiency and EMI performance are critical

With its combination of high efficiency, flexible input and output voltage ranges, and compact design, the Texas Instruments LMZ21700SILT nano module is a powerful solution for modern electronic designs requiring a high-performance power management system.
