Same model may have multiple batches, images only for reference.

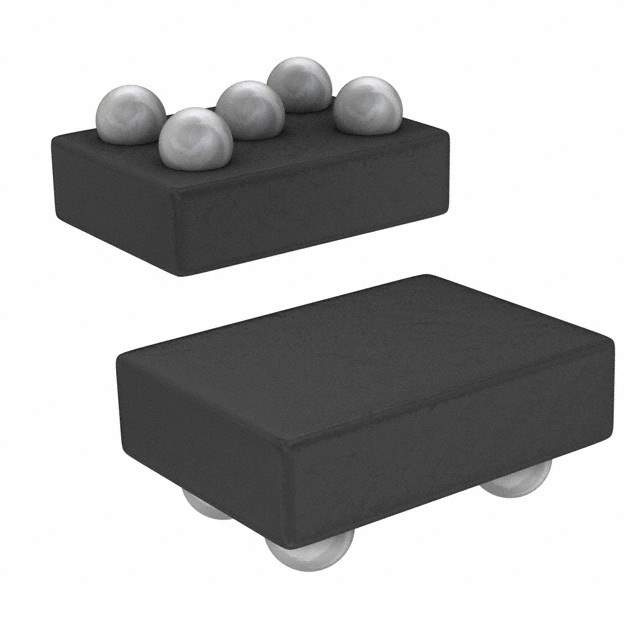

LP2985AIBPX-2.8 Real Image
Same model may have multiple batches, images only for reference.

LP2985AIBPX-2.8

Part No LP2985AIBPX-2.8
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 2.8V 0.15A 5USMD
Datasheet
LP2985AIBPX-2.8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 2.8V
Dropout Voltage-Max 0.58V @ 150mA
Output Current 150mA
Operating Supply Current 95μA to 2.5mA
PSRR 45dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 2.8V
Voltage - Dropout (Typical) 0.28V @ 150mA
Mounting SMD (SMT)
Case / Package 5-uSMD
Win Source Part Number 071774-LP2985AIBPX-2.8
Ultra Librarian 3D Model Ultra Librarian LP2985AIBPX-2.8 CAD Model

Description

The LP2985AIBPX-2.8 is a high-performance, low-noise micro-power voltage regulator from Texas Instruments, a renowned global semiconductor company. This product is designed to meet the rigorous requirements of today's battery-powered devices, making it an ideal choice for a wide range of applications.

  • Output Voltage: 2.8V
  • Load Current: 150mA
  • Applications: Portable and battery-powered devices, smartphones, and other consumer electronics
  • Features: Low noise operation, high PSRR, low dropout voltage, overcurrent protection, overtemperature protection, shutdown feature, RoHS compliant
  • Package: Compact, space-saving micro SMD
