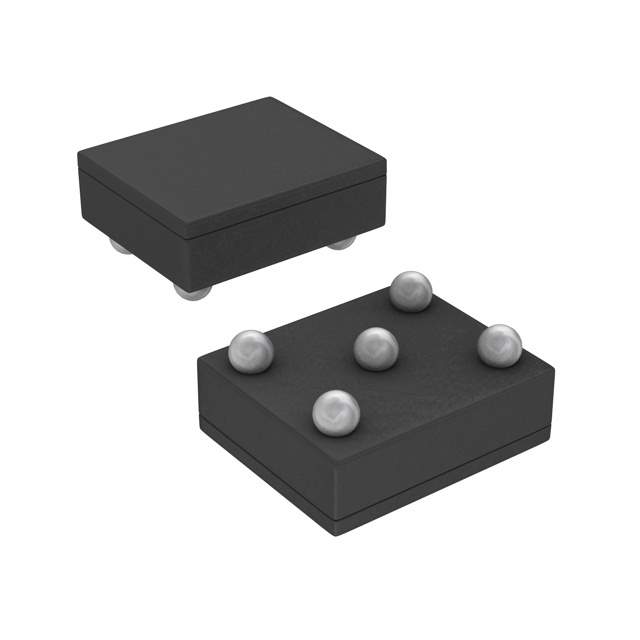

LP2985AITPX-2.8 Real Image
Same model may have multiple batches, images only for reference.

LP2985AITPX-2.8

Part No LP2985AITPX-2.8
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 2.8V 0.15A 5DSBGA
Datasheet
LP2985AITPX-2.8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 2.8V
Dropout Voltage-Max 0.58V @ 150mA
Output Current 150mA
Operating Supply Current 95μA to 2.5mA
PSRR 45dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 2.8V
Voltage - Dropout (Typical) 0.28V @ 150mA
Mounting SMD (SMT)
Case / Package 5-DSBGA
Win Source Part Number 071781-LP2985AITPX-2.8
Ultra Librarian 3D Model Ultra Librarian LP2985AITPX-2.8 CAD Model

Description

The LP2985AITPX-2.8 is a positive fixed voltage regulator from Texas Instruments. It features a fixed output voltage of 2.8V with a maximum output current of 150mA.

  • Output Voltage: 2.8V
  • Output Current: 150mA
  • Dropout Voltage: 0.28V at 150mA
  • Maximum Input Voltage: 16V
  • Package: 5-DSBGA
  • Protection Features: Over current, over temperature, and short circuit protection
  • Operating Temperature Range: -40°C to 125°C
  • Note: This product is End of Life (EOL)
