Product Overview: LP2992AIM5X-3.3 LDO Voltage Regulator

The LP2992AIM5X-3.3 is a high-performance, low-dropout linear voltage regulator from Texas Instruments, designed to deliver a steady 3.3V output from a varying input voltage source. This device is ideal for applications requiring a low power consumption and a stable voltage supply, such as in battery-powered devices, portable electronics, and microprocessor power supplies.

Key Features

• Output Voltage: Fixed 3.3V with high accuracy.
• Dropout Voltage: Low dropout performance, typically 250mV at 250mA load.
• Output Current: Capable of delivering up to 250mA of continuous output current.
• Stability: Stable with low-ESR ceramic capacitors, reducing the size and cost of the external components.
• Power Consumption: Low quiescent current, which is ideal for battery-powered applications.
• Protection Features: Includes thermal shutdown and short-circuit protection for enhanced reliability.

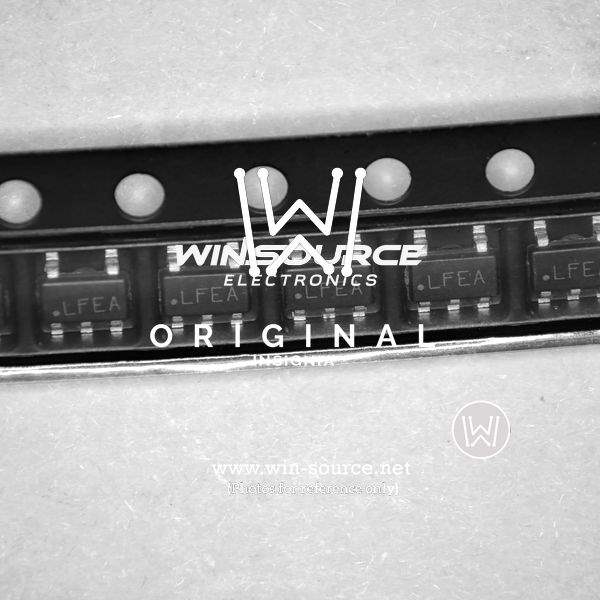

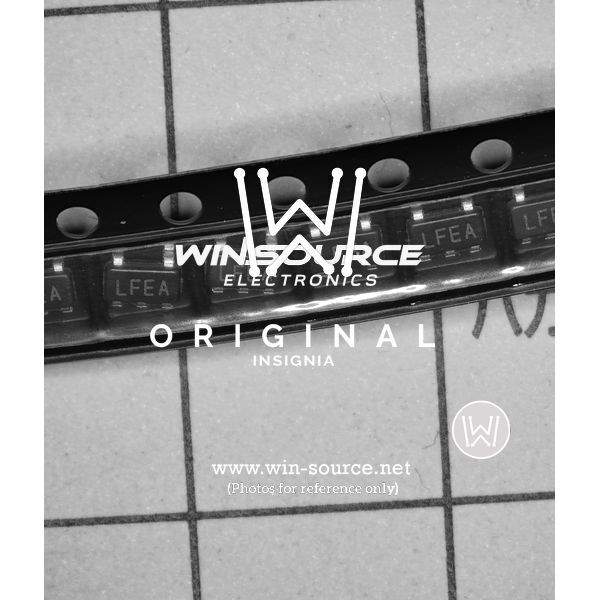

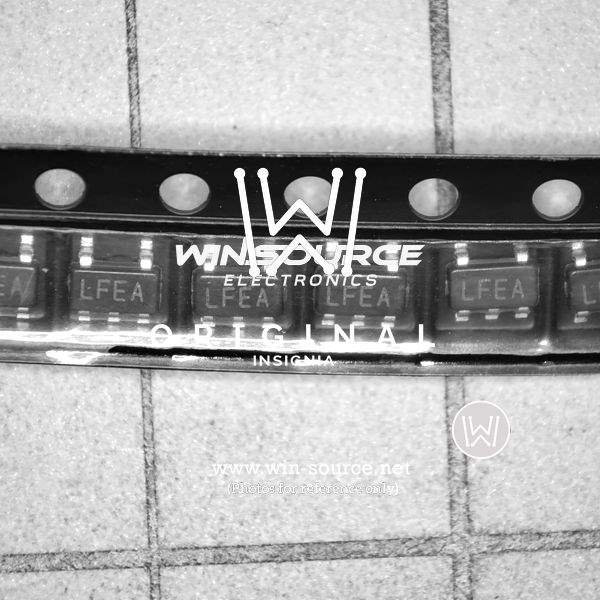

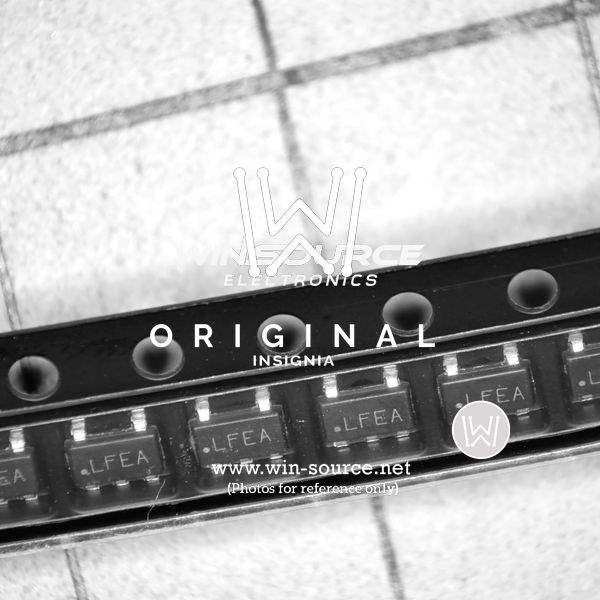

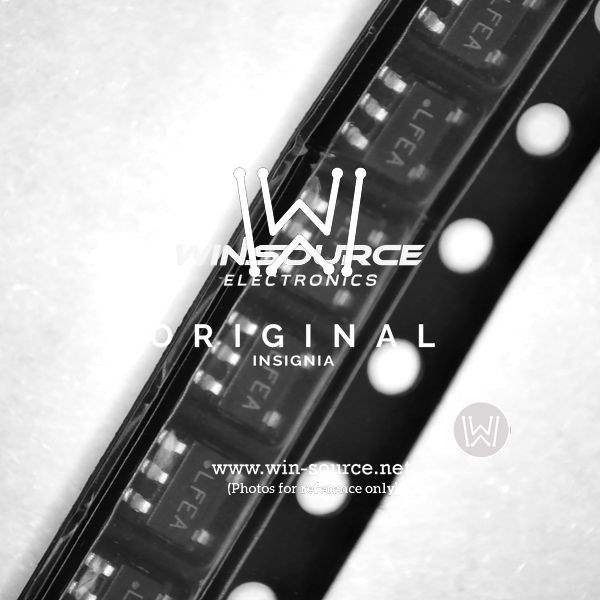

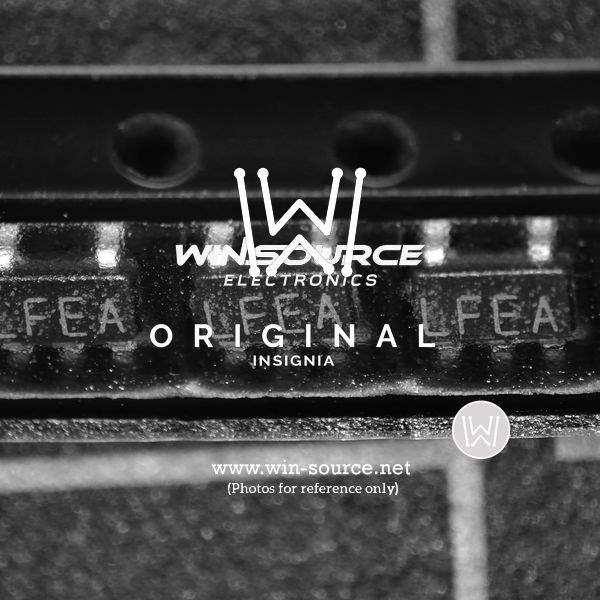

• Package: Available in a small SOT-23 package, making it suitable for space-constrained applications.

Applications

The LP2992AIM5X-3.3 is versatile and can be used in a wide range of applications, including:

• Portable electronics
• Battery-powered devices
• Microprocessor/microcontroller power supplies
• Wireless communication devices
• PDAs and mobile phones

Product Benefits

The LP2992AIM5X-3.3 LDO voltage regulator offers several benefits to designers and engineers. Its high accuracy and low dropout voltage ensure a reliable power supply for sensitive electronic components. The compatibility with ceramic capacitors allows for a more compact and cost-effective design. Additionally, its integrated protection features safeguard the device and the application from potential damage due to overcurrent and overheating conditions.

For detailed specifications, application notes, and additional resources, visit the Texas Instruments official website or contact your local distributor.
