Overview of Texas Instruments LP3871EMPX-3.3

The LP3871EMPX-3.3 is a high-performance, low-dropout (LDO) voltage regulator from Texas Instruments, designed to deliver a steady 3.3 volts output with an input voltage range of 2.5V to 7V. This regulator is capable of supplying 800mA of output current, which makes it suitable for a wide range of applications, including powering sensitive analog and digital circuits.

Key Features

• Output Voltage: Precisely regulated 3.3V output, ideal for consistent performance in electronic systems.
• High Output Current: Capable of delivering up to 800mA, providing ample power for a variety of components.
• Low Dropout: With its low dropout performance, the LP3871EMPX-3.3 ensures efficient operation even when the input voltage is close to the output voltage.
• Stable with Low ESR Capacitors: The device is stable with ceramic capacitors, which reduces the amount of required board space and component cost.
• Thermal Shutdown and Current Limit: Enhanced safety features include thermal shutdown to prevent overheating and current limit to protect against overcurrent conditions.
• Fast Transient Response: The regulator provides a fast transient response, which is critical for maintaining voltage stability during rapid load changes.
• Low Noise: It offers low noise performance, making it ideal for noise-sensitive applications such as RF circuits and precision analog systems.

Applications

The LP3871EMPX-3.3 is versatile and can be used in a multitude of applications, including but not limited to:

• Point-of-load conversions from 5V or 3.3V rails
• Microcontrollers and digital logic supplies
• Peripheral power supplies (e.g., monitors, modems)
• Portable and battery-powered electronics

Package and Availability

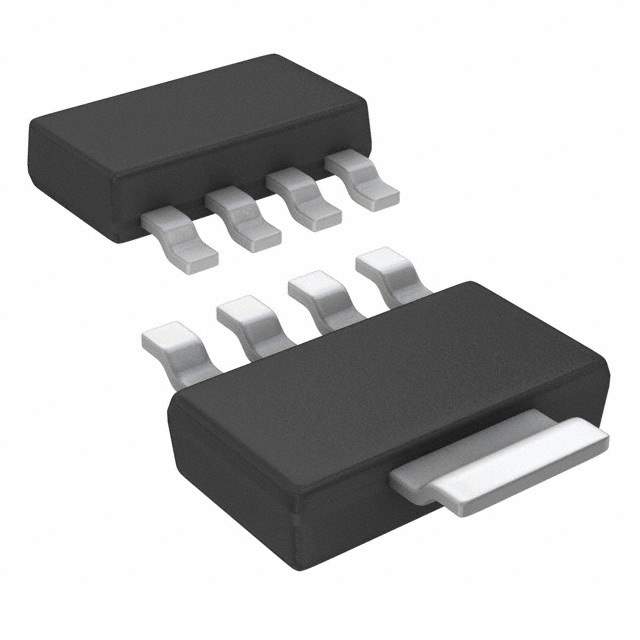

The device is available in a small SOT-223 package, which is suitable for space-constrained applications. Its compact size and low profile make it an excellent choice for portable devices. The LP3871EMPX-3.3 is part of Texas Instruments' reliable product line and is widely available for purchase through various distributors and the Texas Instruments website.

For more detailed information, including pin configurations, typical application circuits, and full electrical specifications, designers are encouraged to refer to the Texas Instruments LP3871EMPX-3.3 datasheet.
