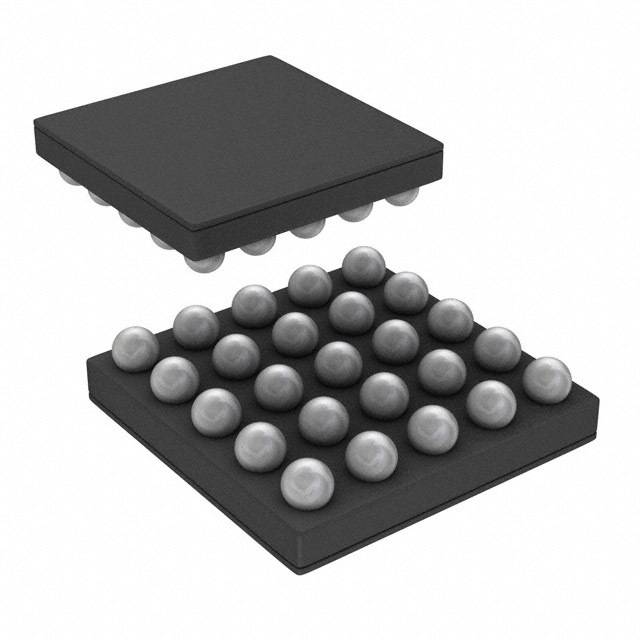

LP8501TMX/NOPB Texas Instruments
Same model may have multiple batches, images only for reference.

LP8501TMX/NOPB

Part No LP8501TMX/NOPB
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 25USMD
Datasheet
LP8501TMX/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 9
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 5.5V
Output Voltage 4.5V
Channel Output Current 25.5mA
Frequency 1.25MHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -30°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 25-uSMD
Win Source Part Number 071949-LP8501TMX/NOPB
Ultra Librarian 3D Model Ultra Librarian LP8501TMX/NOPB CAD Model

Description

The LP8543SQX is a high-quality, high-performance LED backlight driver from Texas Instruments.

  • LED Support: Up to 12 white LEDs in 6 parallel strings.
  • Input Voltage Range: 2.7V to 5.5V
  • Adaptive Output Voltage Control: Automatically adjusts the LED string voltage to reduce power dissipation and improve efficiency.
  • Dimming Technique: Patented phase-shift PWM dimming for reduced audible noise and increased dimming ratio.
  • Protection Features: Over-voltage, over-current, and LED short-circuit protection.
  • Integration: I2C-compatible interface for easy programming.
  • Package: Compact WQFN package.
