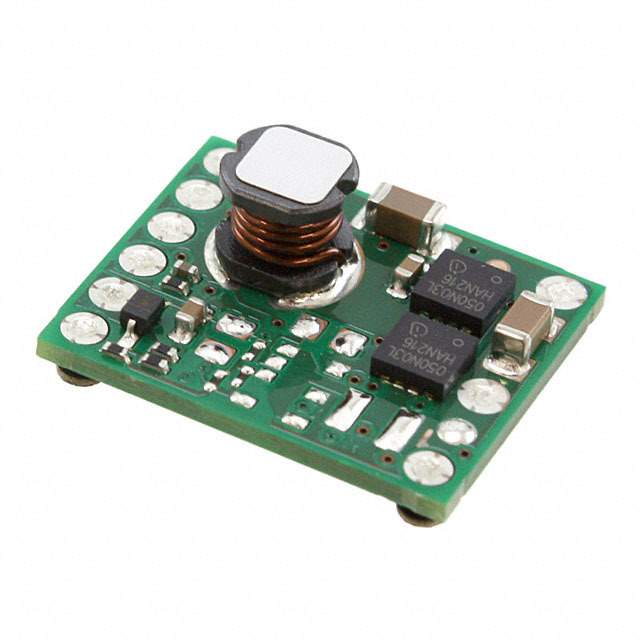

PTH08T230WAS

Part No PTH08T230WAS
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description 6-A, 4.5-V to 14-V INPUT, NON-ISOLATED, WIDE-OUTPUT, ADJUSTABLE POWER MODULE WITH TurboTrans
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Texas Instruments
Series PTH08T230W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Input Voltage MIN 4.5V
Voltage Input MAX 14V
Voltage - Output 1 0.69 ~ 5.5 V
Current - Output (Maximum) 6A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Operating Temperature Range -40°C ~ 85°C
Efficiency 95%
Mounting SMD
Package 10-SMD Module
Size 0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm)
Win Source Part Number 1240608-PTH08T230WAS
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Family Name PTH08T230
Introduction Date November 01, 2005
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian PTH08T230WAS CAD Model

Description

Product Overview: Texas Instruments PTH08T230WAS

The PTH08T230WAS is a high-performance, adjustable non-isolated module with Power Train technology from Texas Instruments. This innovative device is designed to meet the demands of high-density power systems that require a small footprint, high efficiency, and exceptional thermal performance.

Key Features

  • Wide Input Voltage Range: The module operates efficiently across a broad input voltage range from 4.5V to 14V, making it versatile for a variety of applications.
  • Adjustable Output Voltage: The output voltage is adjustable from 0.69V to 5.5V, allowing for precise voltage regulation to meet the needs of specific circuits or components.
  • High Efficiency: With an efficiency of up to 96%, the PTH08T230WAS ensures minimal power loss and helps to reduce the overall thermal footprint in systems where it is deployed.
  • Advanced Thermal Performance: The module is equipped with an integrated heat sink and a thermally efficient package, ensuring reliable operation even at full load and in high-temperature environments.
  • Programmable Soft-Start: The soft-start feature limits inrush current during startup, providing protection for both the power module and the load.
  • Pre-Bias Startup: The device supports operation with pre-biased loads, a critical feature for systems that require sequencing or have multiple power rails.
  • Output Overcurrent Protection: The PTH08T230WAS includes comprehensive protection features, such as overcurrent and over-temperature protection, enhancing the reliability and longevity of both the module and the system it powers.

Applications

The PTH08T230WAS is ideal for a wide range of applications, including but not limited to:

  • Telecommunications equipment
  • Computing and storage systems
  • Industrial controls
  • Networking equipment

Conclusion

With its robust feature set and flexible design, the Texas Instruments PTH08T230WAS power module is an excellent choice for designers looking to optimize power delivery in space-constrained and thermally challenging environments. Its high efficiency, adjustable output, and comprehensive protection features make it a reliable and versatile solution for a multitude of power management applications.
