The SN74AUP2G00DQER is a high-performance, dual 2-input positive-NAND gate IC designed and manufactured by Texas Instruments (TI). This component is part of TI's advanced ultra-low power (AUP) series and is optimized for low-voltage operation, making it ideal for use in portable and battery-powered applications where power efficiency is crucial.

Key Features

• Low Static Power Consumption: With a typical ICC of only 0.9 µA at 3.3 V, the SN74AUP2G00DQER ensures minimal power draw when in a static state.
• Low Dynamic Power Consumption: At 3.3 V, the device has a typical dynamic power consumption of 13.3 µW/MHz, further contributing to energy efficiency in active modes.
• Wide Operating Voltage Range: The device supports a voltage range from 0.8 V to 3.6 V, providing flexibility in various operating conditions and compatibility with other low-voltage logic components.
• Edge-Rate Control Circuitry: This feature minimizes overshoot and undershoot, thus reducing the noise generated during signal transitions.
• I/O Tolerance: The inputs and open-drain outputs support 5-V tolerance, enabling interfacing with higher voltage logic levels without additional level shifters.
• ESD Protection: The device includes robust ESD protection circuits, ensuring resilience against electrostatic discharges.

Applications

The SN74AUP2G00DQER is versatile and can be used in a variety of applications, including:

• Smartphones and tablets
• Wearable technology
• Portable medical devices
• Energy-harvesting systems
• Low-power sensor networks

Packaging and Quality

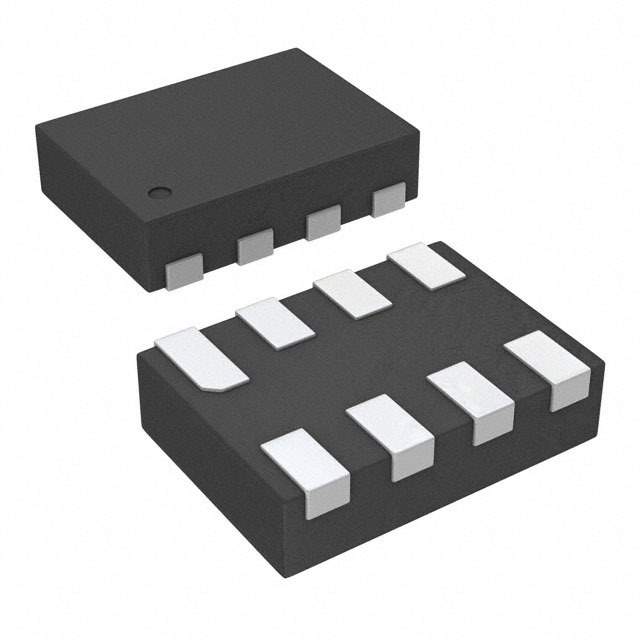

Offered in a space-saving DQFN (Dual Quad Flat No-Lead) package, the SN74AUP2G00DQER is designed for compact PCB layouts. TI's commitment to quality ensures that this product meets stringent industry standards, providing reliable performance in your electronic designs.

For detailed specifications, application notes, and further information, visit the Texas Instruments official website or contact your local TI sales representative.
