Product Overview: SN74AXCH1T45DRYR

The SN74AXCH1T45DRYR is a state-of-the-art, single-bit, dual-supply bus transceiver from Texas Instruments, designed with the modern electronics engineer in mind. This device is part of the extensive SN74 family, known for their reliability and performance in data communication applications.

With its wide voltage range, the SN74AXCH1T45DRYR operates on a V<sub>CCA range of 0.65 V to 3.6 V and a V<sub>CCB range of 1.65 V to 5.5 V. This flexibility allows for seamless integration into systems that operate on different voltage levels, making it an ideal choice for multi-voltage digital systems that require level translation.

Key Features

• Bi-Directional Interface: The transceiver is capable of transmitting data in both directions, from A to B or B to A, depending on the direction pin (DIR) control, which makes it highly versatile in complex digital systems.
• Low Power Consumption: Designed for power-sensitive applications, the SN74AXCH1T45DRYR features a low on-state resistance, minimizing power loss and ensuring efficient operation.
• High-Speed Data Transfer: The device supports high-speed data transfer, which is crucial for applications requiring fast communication between different voltage domains.
• Robust ESD Protection: It includes electrostatic discharge (ESD) protection on all pins, safeguarding the device from static damage and enhancing its durability in harsh environments.

Applications

The SN74AXCH1T45DRYR is well-suited for a variety of applications, including but not limited to:

• Level translation for data buses in multi-voltage systems
• Serving as an interface between microprocessors or microcontrollers and peripherals with different voltage levels
• Mobile phones, personal digital assistants (PDAs), and other battery-operated devices where power efficiency is critical

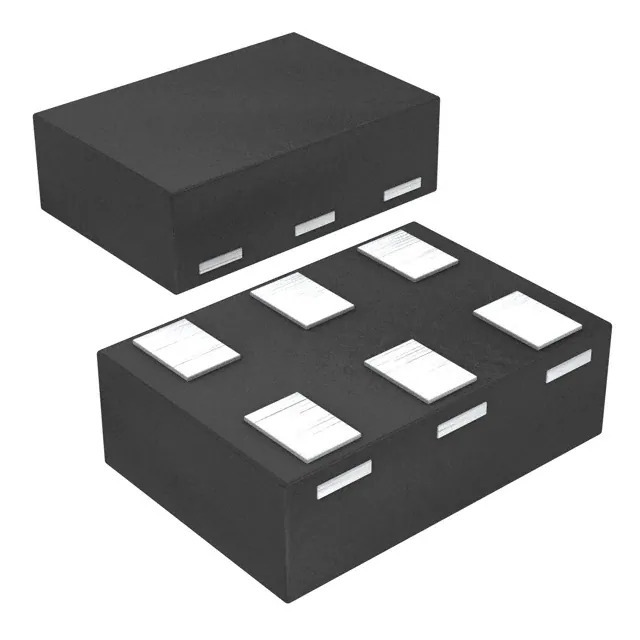

Encased in a compact, 6-pin SOT-23 package, the SN74AXCH1T45DRYR is designed for space-constrained applications. Its small footprint allows for high-density mounting, which is essential in portable and miniaturized electronic devices.

Overall, the SN74AXCH1T45DRYR from Texas Instruments represents a perfect blend of versatility, efficiency, and durability, making it a top choice for designers looking to bridge different voltage domains within their digital systems.
