Product Overview: SN74AUP2G79YFPR from Texas Instruments

The SN74AUP2G79YFPR is a high-performance, dual positive-edge-triggered D-type flip-flop with a clear input, designed and manufactured by the renowned Texas Instruments. This advanced logic device is part of the ultra-low power AUP family, which is optimized for low-voltage and low-power operations, making it an ideal component for energy-sensitive applications.

Key Features

• Low Power Consumption: The device operates with a very low static power consumption of only 0.9 µA max at 3.6 V, which is crucial for battery-powered and portable devices.
• Wide Operating Voltage Range: It supports a broad V<sub>CC operating range from 0.8 V to 3.6 V, allowing for flexible integration into various circuit designs.
• High-Speed Operation: Despite its low power usage, the SN74AUP2G79YFPR does not compromise on speed, featuring t<sub>pd of 3.7 ns at 3.3 V, which is suitable for high-speed data processing tasks.
• IOFF Support: The device offers IOFF circuitry, which provides partial Power-down mode operation by disabling the outputs and preventing damaging current backflow through the device when it is powered down.
• ESD Protection: Enhanced electrostatic discharge (ESD) protection is built-in, with the device being able to withstand ESD strikes of up to ±8 kV on the human body model (HBM).

Applications

The SN74AUP2G79YFPR is versatile and can be used in a wide range of applications, including but not limited to:

• Smartphones, tablets, and other portable electronics
• Energy-harvesting systems
• Wearable technology
• Data storage and communication systems
• Industrial controls and automation

Package and Quality

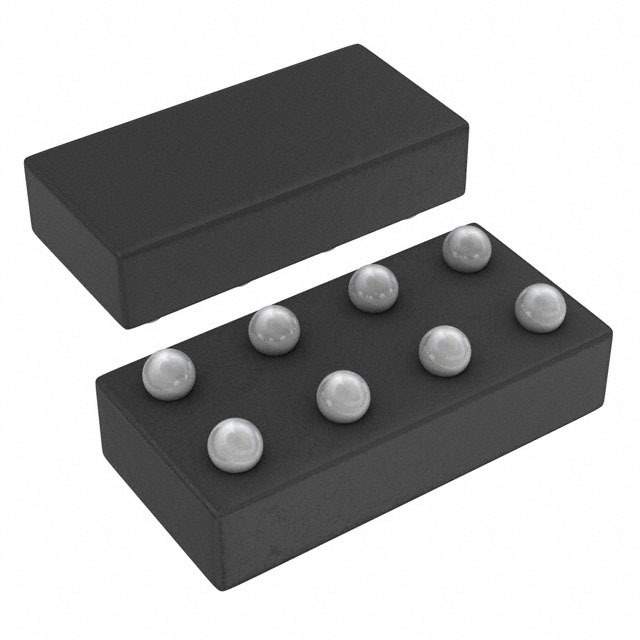

This device is offered in a space-saving DSBGA package, which is optimized for reduced space on PCBs. The SN74AUP2G79YFPR is also compliant with the RoHS directives, ensuring that it meets the latest environmental standards for electronic components. With Texas Instruments' reputation for quality and reliability, this product is a dependable choice for designers looking to enhance their electronic designs with a high-performance flip-flop component.
