The SN74HCT74PWT from Texas Instruments is a dual D-type positive edge-triggered flip-flop integrated circuit, designed for high-performance applications in a wide range of digital systems. This device features two identical flip-flops with independent data (D), set (S), reset (R), and clock (CLK) inputs, and outputs (Q and Q̅).

The SN74HCT74PWT is part of the 'HCT' family, which signifies that it is a high-speed CMOS device. It is compatible with TTL (Transistor-Transistor Logic) levels, allowing it to be used in systems that incorporate both CMOS and TTL technologies. This makes it a versatile choice for interfacing with different logic families.

The flip-flops in the SN74HCT74PWT change state on the positive-going transition of the clock input. A low level at the preset or clear inputs sets or resets the outputs, regardless of the levels of the other inputs. When set and reset inputs are inactive (high), data at the D input meeting the setup time requirements is transferred to the outputs on the rising edge of the clock pulse.

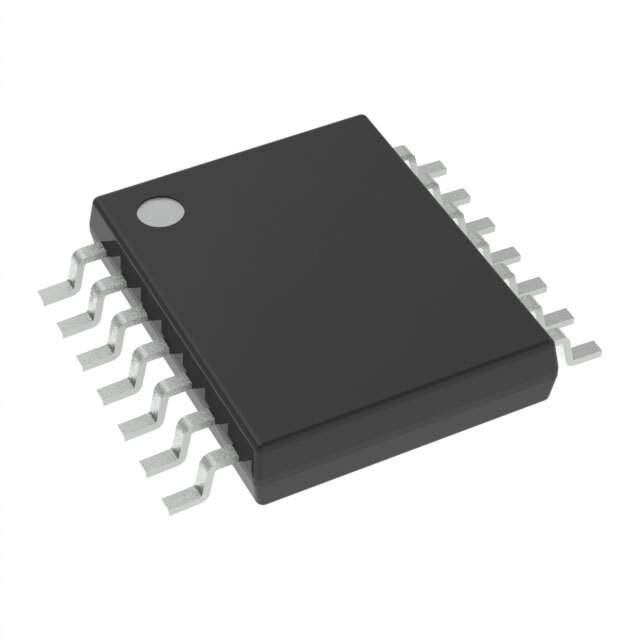

The SN74HCT74PWT is offered in a TSSOP (Thin Shrink Small Outline Package) with 14 pins, which provides a compact footprint for space-constrained applications. It operates over a broad voltage range from 4.5V to 5.5V and features a wide operating temperature range, making it suitable for industrial-grade applications.

Key features of the SN74HCT74PWT include its high noise immunity, low power consumption, and the ability to drive up to 10 LSTTL loads. The low power consumption is particularly beneficial in battery-operated and power-sensitive designs. Additionally, the device's balanced propagation delay and transition times offer reliable and predictable performance, crucial for timing-critical applications.

Texas Instruments provides detailed datasheets, application notes, and support resources to assist designers in integrating the SN74HCT74PWT into their projects, ensuring a smooth design process and reliable operation in the final application.
