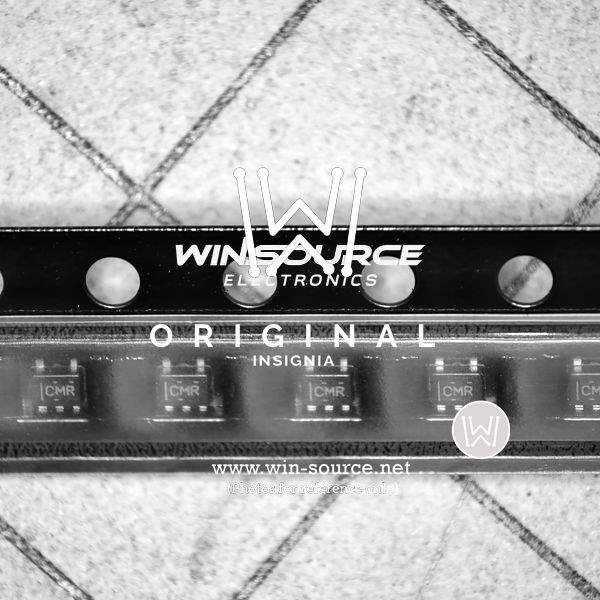

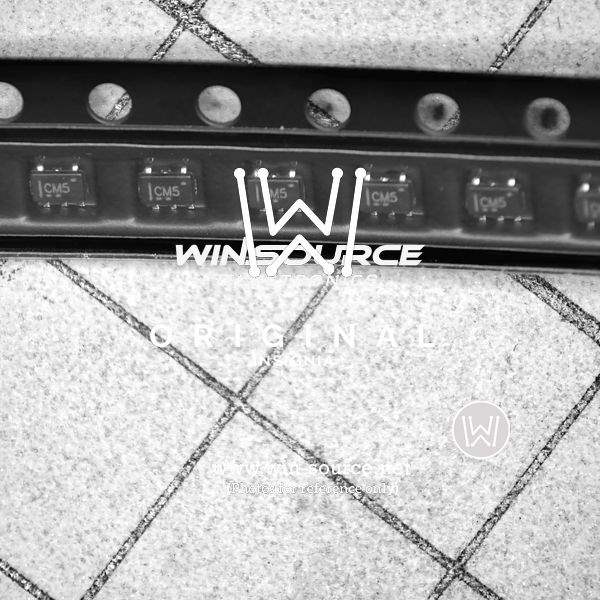

Product Overview: SN74LVC1G125DCKT

The SN74LVC1G125DCKT is a single-line driver from Texas Instruments, designed to deliver high-performance, low-voltage operation suitable for a wide range of applications. This device belongs to the 74LVC family of products that are known for their low-voltage capabilities and high-speed interface technology.

Key Features

• Logic Type: The device is a single bus buffer gate with 3-state output, which allows for controlled data transmission and prevents data backflow.
• Supply Voltage: It operates at a wide range of supply voltages from 1.65V to 5.5V, making it compatible with various logic levels and suitable for battery-operated applications.
• Output Drive Capability: The SN74LVC1G125DCKT can deliver up to 24mA of continuous output current, ensuring reliable signal transmission even in high-load conditions.
• Package: It comes in a SC70 (SOT-323) package, which is known for its small footprint, making it an ideal choice for space-constrained applications.
• Performance: With a propagation delay of typically 2.9ns at 3.3V, the device provides high-speed data transmission, which is essential for modern digital systems.

Applications

The SN74LVC1G125DCKT is versatile and can be used in various applications such as:

• Mobile Phones
• PDAs
• Portable Instrumentation
• Computers and Computer Peripherals
• Data Communication Equipment

Environmental and Quality Certifications

Texas Instruments ensures that the SN74LVC1G125DCKT meets rigorous environmental and quality standards. The device is compliant with the RoHS directive, which restricts the use of certain hazardous substances in electrical and electronic equipment. Additionally, it adheres to industry quality standards, ensuring reliability and performance consistency across different batches.

Whether you're designing a new system or upgrading an existing one, the SN74LVC1G125DCKT offers a compelling blend of performance, power efficiency, and versatility, making it a smart choice for your digital logic needs.
