TLV62569PEVM-860 Evaluation Module by Texas Instruments

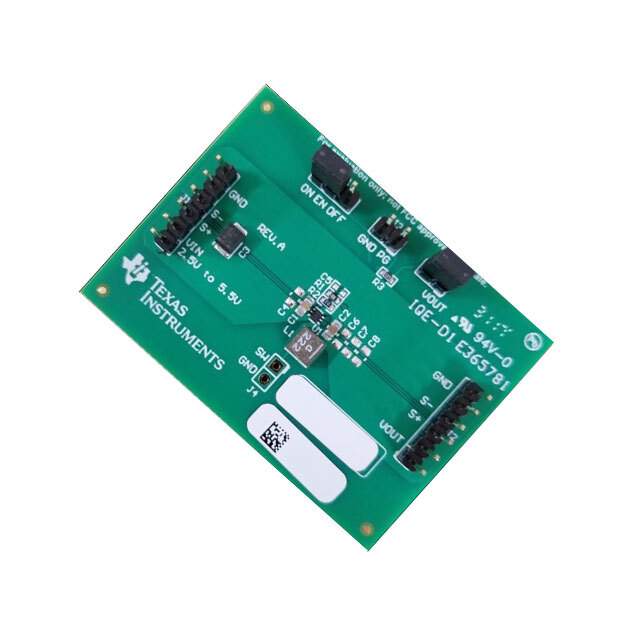

The TLV62569PEVM-860 evaluation module (EVM) is a fully assembled and tested circuit for evaluating the TLV62569P, a high-efficiency, synchronous step-down converter from Texas Instruments. This EVM is designed to help designers quickly and easily assess the performance of the TLV62569P in their applications.

Key Features of the TLV62569PEVM-860

• High Efficiency: The TLV62569P is optimized for high efficiency across a wide load range, making it an excellent choice for battery-powered and energy-sensitive applications.
• Adjustable Output Voltage: This EVM allows for an adjustable output voltage that can be set from 1.2V to 5.5V via external resistors, accommodating a variety of design needs.
• Compact Design: With its small form factor, the TLV62569PEVM-860 is suitable for testing in space-constrained applications.
• Input Voltage Range: The input voltage range of 2.5V to 5.5V provides flexibility for use with various power sources.
• Peak Current Capability: The TLV62569P supports up to 2 A of continuous output current, ensuring reliable operation under varying load conditions.
• Thermal and Overcurrent Protection: Built-in safety features protect the device and the application from potential damage due to overheating or excessive current draw.

Applications

The TLV62569PEVM-860 is ideal for a multitude of applications, including:

• Portable and battery-powered devices
• Wireless power supplies
• Power banks
• IoT devices
• Wearable technology

Easy to Use

The EVM comes equipped with test points and jumpers for easy evaluation and measuring of the converter's efficiency, output voltage stability, and other parameters. It also includes headers compatible with standard breadboards, facilitating rapid prototyping and integration into existing designs.

Support and Documentation

Texas Instruments provides comprehensive support for the TLV62569PEVM-860, including detailed documentation, reference designs, and technical support from their engineering community. This ensures that users can maximize the potential of the EVM and the TLV62569P converter for their specific application needs.

Whether you are a professional engineer or a student working on a project, the TLV62569PEVM-860 evaluation module from Texas Instruments is a valuable tool for assessing the capabilities of the TLV62569P step-down converter and expediting the design process.
