Overview of Texas Instruments TLV70018DDCR

The TLV70018DDCR is a high-performance, low-dropout (LDO) voltage regulator from the renowned semiconductor manufacturer Texas Instruments (TI). This compact and efficient power management integrated circuit (IC) is designed to deliver a stable and precise 1.8V output voltage, which is essential for powering sensitive electronic components in a variety of applications.

Key Features

• Output Voltage: The device provides a fixed output voltage of 1.8V, which is ideal for low-voltage operations in modern electronic systems.
• High Accuracy: The output voltage accuracy is maintained within ±2%, ensuring reliable performance and stability for connected devices.
• Low Dropout: With a low dropout voltage, the TLV70018DDCR can continue to provide a regulated output even when the input-to-output voltage differential is minimal, making it suitable for battery-powered applications.
• Current Capacity: The regulator can supply up to 200 mA of continuous load current, catering to a wide range of power requirements.
• Thermal Protection: The device includes over-temperature protection, which safeguards the IC from damage due to excessive heat.
• Overcurrent Protection: The built-in current limit feature helps prevent damage to the regulator and the load in the event of a fault condition or excessive power draw.
• Low Power Consumption: With a very low quiescent current, the TLV70018DDCR is optimized for energy-sensitive applications, contributing to extended battery life in portable devices.

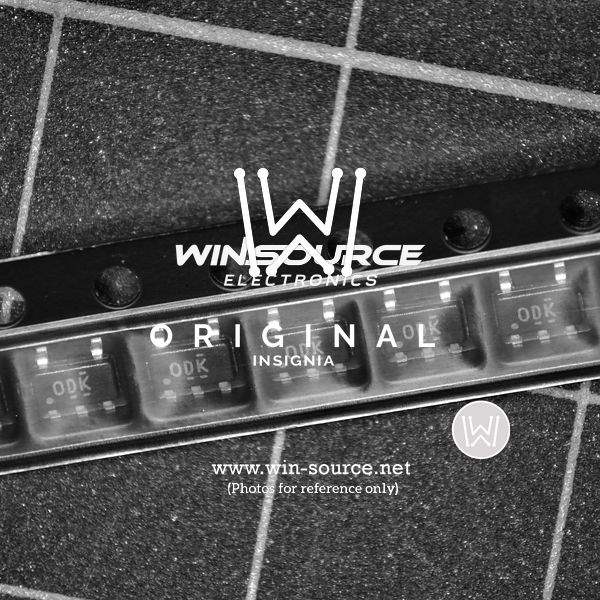

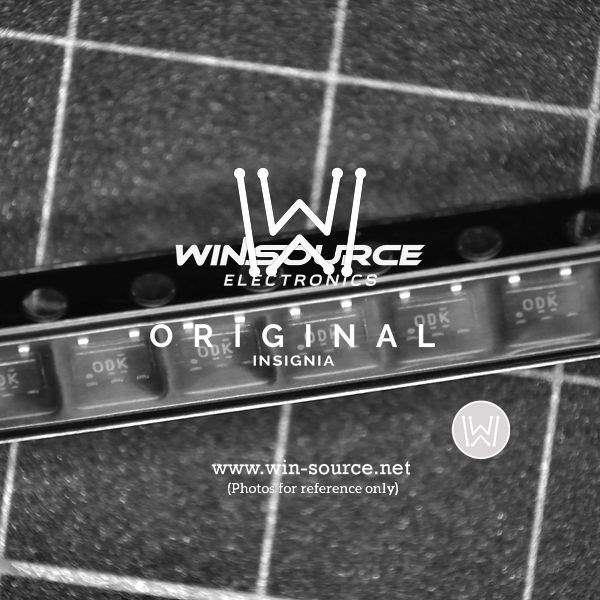

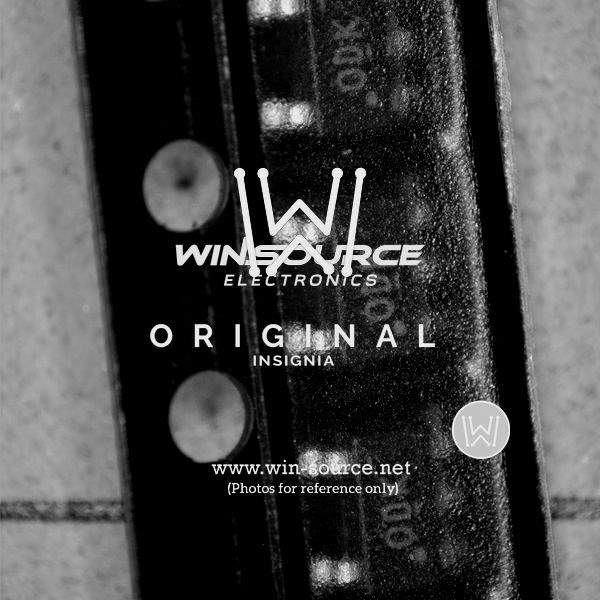

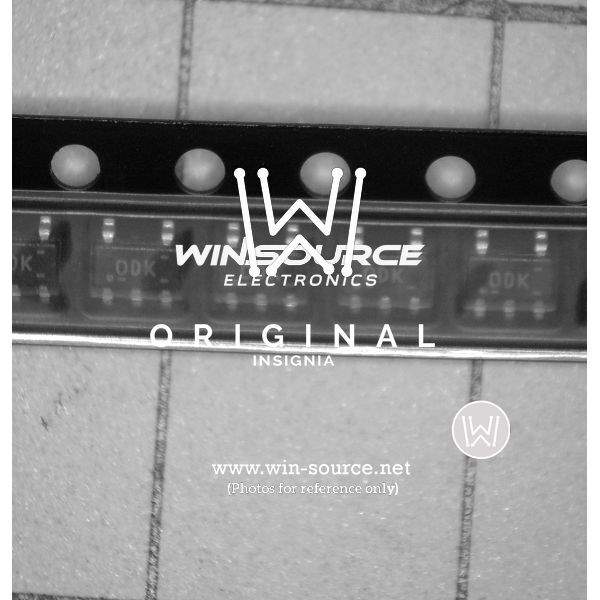

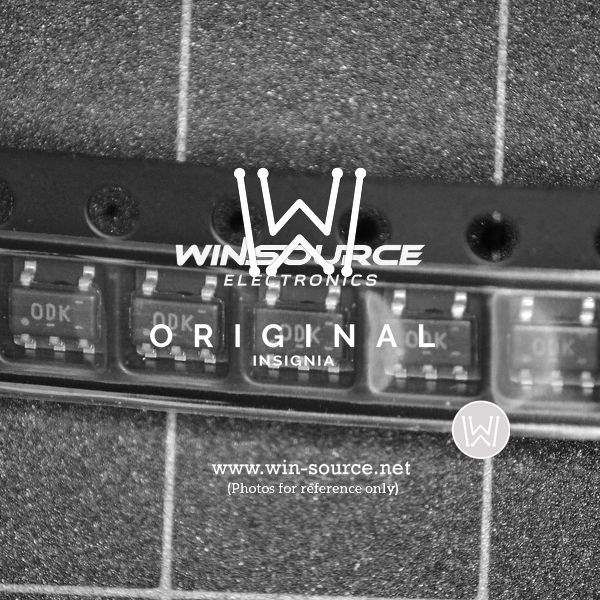

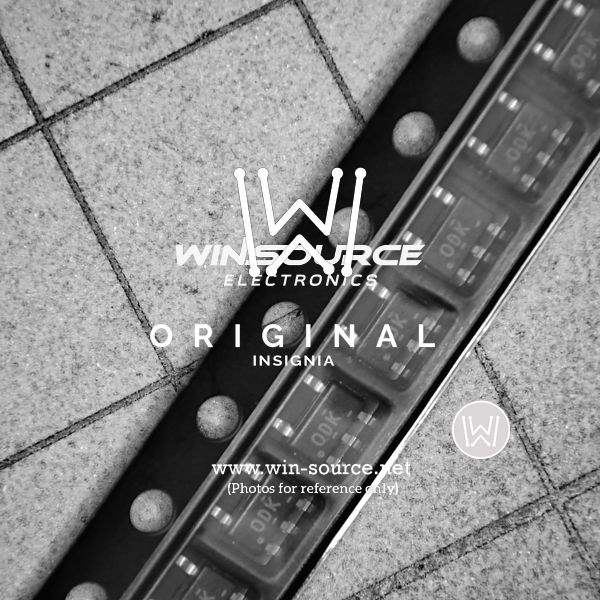

• Small Footprint: The IC comes in a small SOT-23 package, making it an excellent choice for space-constrained applications.

Applications

The TLV70018DDCR is versatile and can be used in a multitude of electronic devices. Its stable output and low power consumption make it particularly well-suited for:

• Portable and battery-powered devices
• Wireless communication systems
• Microcontroller power supplies
• Handheld medical equipment
• Power management for sensors and analog circuits

With its combination of features, the TLV70018DDCR from Texas Instruments is an excellent choice for designers looking for a reliable and efficient voltage regulation solution.
