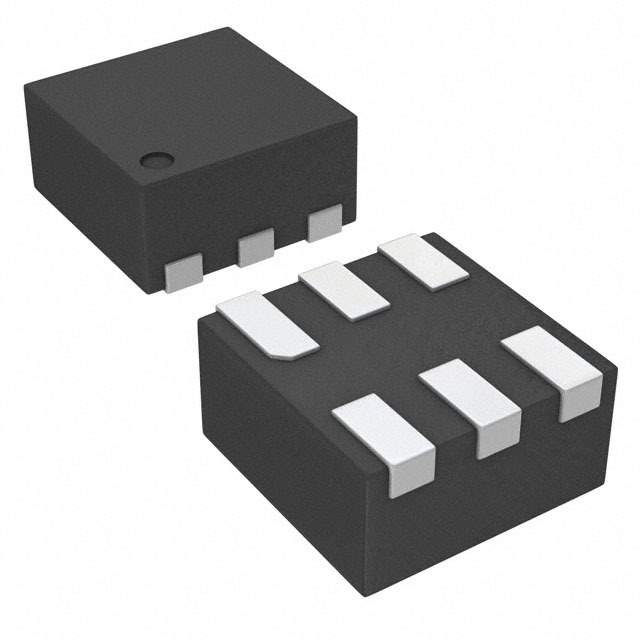

TLV7103318QDSERQ1

Part No TLV7103318QDSERQ1
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN 3.3V/1.8V 200MA 6WSON / Linear Voltage Regulator IC Positive Fixed 2 Output 200mA 6-WSON (1.5x1.5)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Power Management (PMIC)>Voltage Regulators - Linear
Manufacturer Texas Instruments
Packaging Reel - TR
Output Configuration Positive
Output Type Fixed
Number of Regulators 2
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 3.3V, 1.8V
Voltage Dropout (Max) 0.2V @ 200mA, -
Current - Output 200mA
Current - Quiescent (Iq) 110 µA
PSRR 80dB ~ 50dB (10Hz ~ 100kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Case / Package 6-WFDFN
Supplier Device Package 6-WSON (1.5x1.5)
Base Product Number TLV7103318
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number TLV7103318QDSERQ1-ND,296-40641-6,2156-TLV7103318QDSERQ1,296-40641-2,296-40641-1,TEXTISTLV7103318QDSERQ1,-296-40641-1-ND
Standard Package 3,000
Win Source Part Number 1323657-TLV7103318QDSERQ1
Ultra Librarian 3D Model Ultra Librarian TLV7103318QDSERQ1 CAD Model

Description

The TLV7103318QDSERQ1 from Texas Instruments is a highly reliable, automotive-grade low-dropout (LDO) voltage regulator, specifically designed to meet the rigorous standards of the automotive industry. This component is optimized for use in power-sensitive applications, providing a stable and efficient power supply with a fixed output voltage of 3.3V.

Key Features:

  • High Power Supply Rejection Ratio (PSRR): With an impressive PSRR of 65dB at 1kHz, the TLV7103318QDSERQ1 ensures that output voltage remains stable despite variations in the input voltage, which is critical for sensitive electronic applications.
  • Low Quiescent Current (IQ): The device boasts a low IQ of 35 µA, making it ideal for battery-powered applications where power efficiency is paramount.
  • Output Current: Capable of delivering up to 200 mA of output current, this LDO can power a wide range of components and systems within a vehicle.
  • Low Dropout: The low dropout feature ensures the regulator maintains output regulation with a minimal difference between the input and output voltages, which is beneficial for systems with low input voltage headroom.
  • Thermal Shutdown and Overcurrent Protection: Built-in safety features protect the device and the application from damage due to excessive temperature or current conditions.
  • Wide Operating Temperature Range: With an operational temperature range from -40°C to 125°C, the TLV7103318QDSERQ1 is suitable for the harsh environments encountered in automotive applications.

Applications:

This voltage regulator is ideal for automotive applications that require a stable and efficient power supply, such as infotainment systems, instrument clusters, and advanced driver assistance systems (ADAS). Its robust design also makes it suitable for power management tasks in other transportation vehicles, industrial equipment, and any application where a high-quality, reliable power source is needed.

Quality and Reliability:

The TLV7103318QDSERQ1 is designed to meet the stringent requirements of the automotive industry, including AEC-Q100 qualification, ensuring high reliability and performance under extreme conditions. Texas Instruments' commitment to quality makes this LDO an excellent choice for designers seeking to enhance the safety and longevity of their automotive systems.
