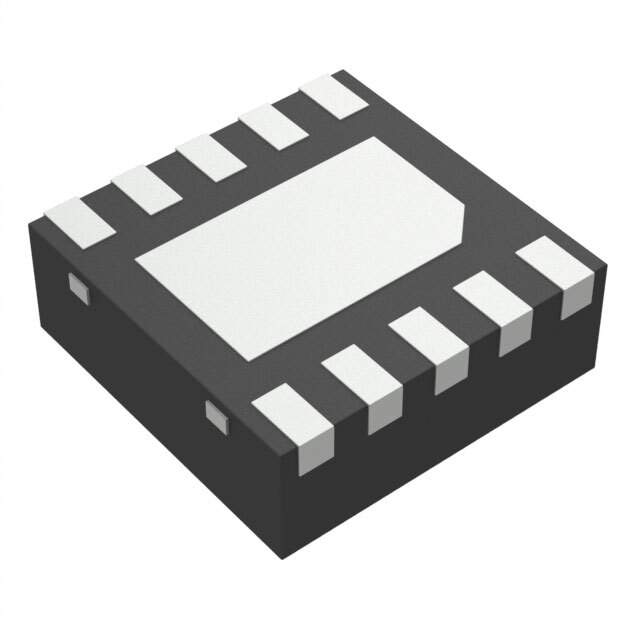

Overview of Texas Instruments TLV75201PDSQT

The TLV75201PDSQT is a high-performance, low-dropout voltage regulator (LDO) brought to you by Texas Instruments, a leader in semiconductor solutions. This LDO is designed to deliver a stable and precise voltage supply, ensuring optimal performance for a variety of applications. With its compact size and high reliability, the TLV75201PDSQT is an excellent choice for designers looking to improve power efficiency in their electronic devices.

Key Features

• Output Voltage: The TLV75201PDSQT provides a fixed output voltage of 1.0V, which is ideal for powering sensitive electronic components that require a stable power supply.
• High Accuracy: This LDO offers excellent load and line regulation, ensuring that the output voltage remains consistent even with variations in input voltage or load conditions.
• Low Dropout: With a low dropout voltage, the TLV75201PDSQT maintains its output regulation even when the input voltage is very close to the output voltage, making it highly efficient for battery-powered applications.
• Current Capacity: It can supply up to 2A of output current, making it suitable for a wide range of power-hungry devices.
• Thermal Protection: The built-in thermal shutdown feature protects the device from overheating, enhancing its durability and reliability.
• Small Footprint: The device is available in a small, leaded SOT-23 package, which is perfect for space-constrained applications.
• Wide Operating Temperature Range: It operates over a broad temperature range, making it versatile for use in various environmental conditions.

Applications

The TLV75201PDSQT is suitable for a range of applications, including but not limited to:

• Portable and battery-powered devices
• Wireless communication systems
• Power supplies for DSPs, MCUs, and FPGAs
• Automotive electronics
• Medical equipment

With its robust feature set and Texas Instruments' reputation for quality, the TLV75201PDSQT is an excellent choice for designers looking to enhance the performance and efficiency of their power management systems.
