Overview of the TLV75718PDRVR from Texas Instruments

The TLV75718PDRVR is a state-of-the-art low-dropout (LDO) linear voltage regulator designed and manufactured by Texas Instruments (TI). This advanced component is engineered to provide a stable and reliable power supply for a wide range of applications. With its impressive specifications and features, the TLV75718PDRVR is an ideal choice for designers looking for a high-performance power management solution.

Key Features

• Output Voltage: The TLV75718PDRVR offers a fixed output voltage of 1.8V, which is ideal for powering sensitive electronic circuits that require a precise voltage level.
• High Accuracy: This regulator boasts a high level of accuracy, with a typical output voltage tolerance of ±1%, ensuring reliable performance in critical applications.
• Load Current: It can deliver up to 500 mA of continuous load current, making it suitable for a variety of medium-power devices.
• Low Dropout: The device features a low dropout voltage, which allows for efficient operation even when the input voltage is very close to the output voltage.
• Power Supply Rejection Ratio (PSRR): With an excellent PSRR, the TLV75718PDRVR minimizes the amount of power supply noise that reaches the output, providing a cleaner voltage for sensitive components.
• Thermal Protection: It includes built-in thermal shutdown protection that safeguards the device and the system from damage due to overheating.

Applications

The TLV75718PDRVR is versatile and can be used in a multitude of applications, including but not limited to:

• Portable and battery-powered devices
• Wireless communication systems
• Power supplies for sensors and analog circuits
• Microcontroller power supplies

Package and Reliability

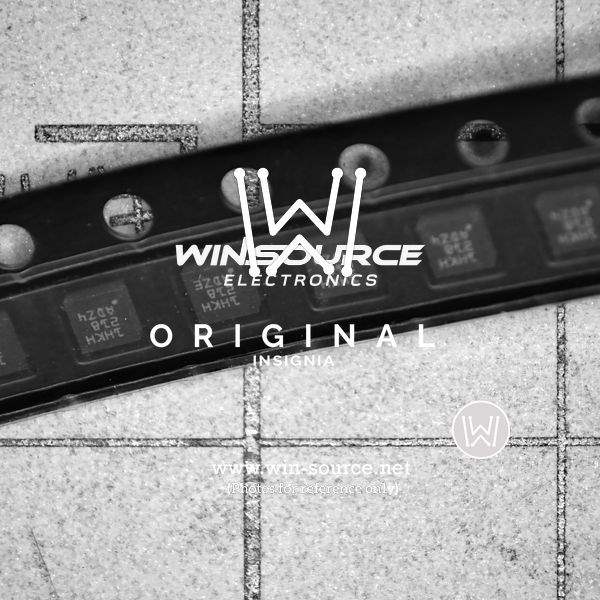

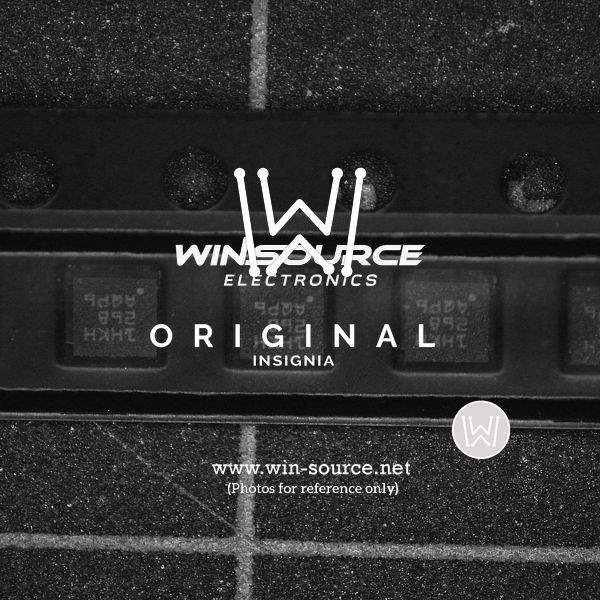

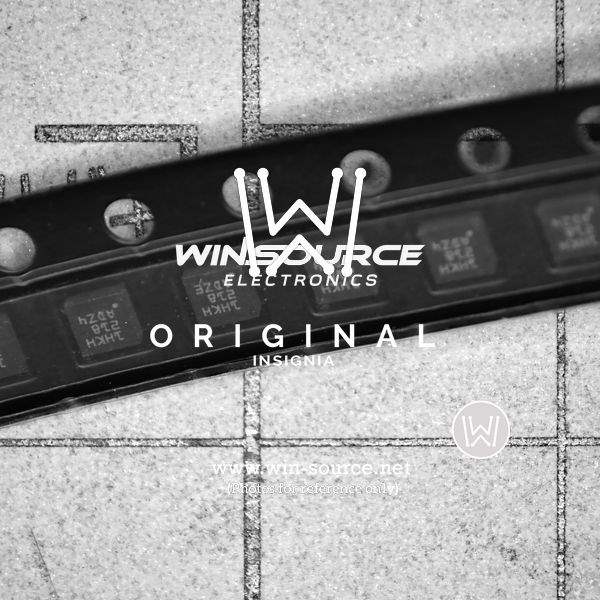

The device is available in a small 6-pin WSON package, which is designed for space-constrained applications. The package dimensions are 2.00 mm x 2.10 mm x 0.75 mm. TI's commitment to quality ensures that the TLV75718PDRVR meets rigorous reliability standards, offering a robust solution for your power management needs.

Overall, the TLV75718PDRVR from Texas Instruments is a high-quality LDO voltage regulator that offers a combination of precision, efficiency, and reliability, making it an excellent choice for designers aiming to optimize their power supply systems.
