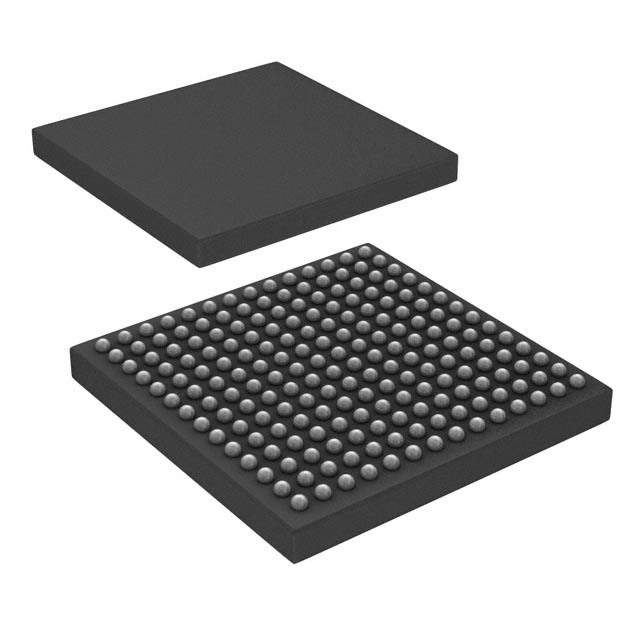

The TMS320C5505AZCHA10 is a highly integrated, high-performance digital signal processor (DSP) from Texas Instruments (TI), designed for applications requiring efficient, low-power signal processing capabilities. This DSP is part of TI's TMS320C5505 product line, which is well-known for its robust architecture, designed to handle complex algorithms and signal processing tasks with ease.

Key Features

• Core: The device features a fixed-point DSP core that operates at a frequency of up to 100 MHz, providing 100 million instructions per second (MIPS) of processing power, which allows for efficient real-time processing of audio, voice, and data signals.
• Memory: It includes a range of on-chip memory options, such as 64KB of RAM and 256KB of ROM, to support various signal processing tasks without the need for external memory components.
• Power Efficiency: With its low-power design, the TMS320C5505AZCHA10 is optimized for portable and battery-powered applications, minimizing power consumption without sacrificing performance.
• Peripherals: The DSP is equipped with a rich set of peripherals, including USB 2.0 full-speed interface, I2C, SPI, UART, and multiple general-purpose I/O pins (GPIO) for flexible connectivity options.
• Audio Interfaces: It supports multiple audio interfaces such as I2S, AC97, and TDM, making it ideal for applications in audio processing like speech and music processing.
• Analog-to-Digital Converter: An integrated high-performance 10-bit 4-channel ADC allows for direct interfacing with analog sensors and signals, further reducing system complexity and cost.

Applications

The TMS320C5505AZCHA10 is suited for a wide range of applications, particularly those that require efficient, low-power consumption with high signal processing demands. It's commonly used in:

• Portable audio devices
• Biometric security systems
• Medical monitoring and diagnostic equipment
• Voice recognition and processing systems
• Industrial control and monitoring

With its combination of performance, power efficiency, and integrated peripherals, the TMS320C5505AZCHA10 from Texas Instruments is a versatile DSP choice for designers and engineers looking to develop advanced digital signal processing systems.
