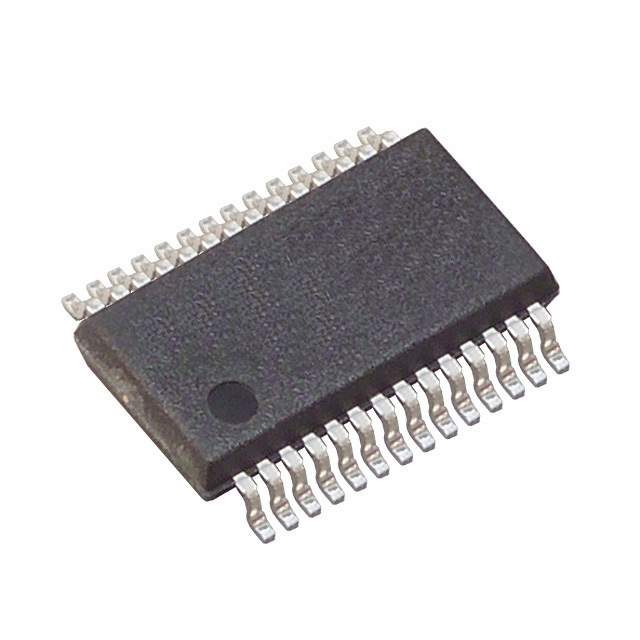

TPIC46L02DB Power Logic 8-Bit Shift Register by Texas Instruments

The TPIC46L02DB is a robust, high-performance integrated circuit designed by Texas Instruments, renowned for their innovation in the semiconductor industry. This device is a power logic 8-bit shift register, which incorporates the functionality of a shift register with the high current sinking capability and low output saturation voltages.

Key Features:

• Integrated Power Output Stages: The device includes eight DMOS transistor outputs, which can sink high levels of current, making it ideal for driving a variety of loads, including relays, solenoids, and other high-current applications.
• High-Voltage Operation: With an operating voltage range of 8.5V to 50V, the TPIC46L02DB is versatile and can be used in a wide array of industrial and automotive environments.
• Enhanced Thermal Performance: The device is designed with low on-state resistance, resulting in reduced power dissipation and improved thermal efficiency.
• Serial Input/Output: The serial input and output functionality allows for cascading multiple devices, enabling the expansion of output capability without the need for additional microcontroller pins.
• Output Clamp Diodes: Clamp diodes are included for inductive transient suppression, which is essential when driving inductive loads.
• Robust Protection Features: The TPIC46L02DB offers built-in protection against over-current, over-temperature, and excessive power dissipation, ensuring reliable operation and longevity of the device.

Applications:

The TPIC46L02DB is particularly well-suited for a variety of applications where high current control is required. It is commonly used in:

• Automotive systems
• Industrial control systems
• LED displays
• Relay drivers
• Motor control circuits

Its robust design and flexible features make the TPIC46L02DB a go-to component for designers who require a reliable solution for managing high-current loads through a serial interface. Manufactured by Texas Instruments, customers can be assured of the quality and support that come with one of the leading brands in the electronics industry.
