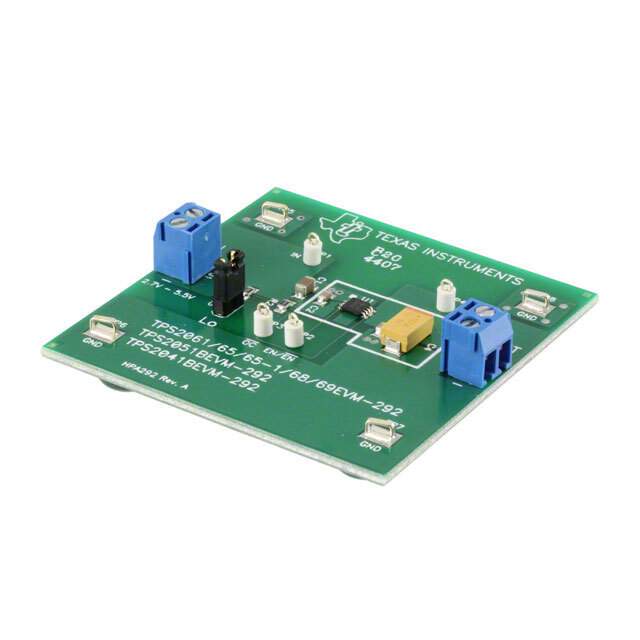

The TPS2041BEVM-292 is a fully assembled and tested evaluation module for the TPS2041B, a single-channel, current-limited, power-distribution switch from Texas Instruments. Designed for USB applications, this evaluation module provides an excellent platform for testing and validating the performance of the TPS2041B switch under various operating conditions.

Key Features

• USB Compatibility: The TPS2041B is designed to meet USB 2.0 specifications, making it ideal for USB port power management.
• Current Limiting: The switch features programmable current limiting to protect the USB port from overcurrent conditions.
• Thermal Shutdown: An integrated thermal shutdown feature provides additional protection against excessive power dissipation and high temperatures.
• Under-Voltage Lockout (UVLO): The UVLO feature ensures that the switch remains off when the input voltage is below a certain threshold, preventing malfunction at low voltages.
• Fast Transient Response: The device is capable of handling quick changes in load current, ensuring stable operation during sudden load transitions.

Applications

The TPS2041B switch is versatile and can be used in various applications, including USB hubs, desktop and notebook computers, docking stations, and other peripherals requiring power distribution and protection for USB ports.

Technical Specifications

• Input Voltage Range: 2.7V to 5.5V
• Continuous Load Current: Up to 500 mA per channel
• Operating Temperature Range: -40°C to 85°C

Evaluation Module Contents

The TPS2041BEVM-292 includes the evaluation board for the TPS2041B, as well as user guides and technical documentation to assist with setup and experimentation. The module provides easy access to all the signal pins of the device, facilitating comprehensive testing and system integration.

Note: For detailed information, please refer to the TPS2041B datasheet and the TPS2041BEVM-292 user manual.
