Product Overview: TPS54526RSAR from Texas Instruments

The TPS54526RSAR is a high-performance, adaptive on-time D-CAP2 mode synchronous buck converter from the reputable Texas Instruments. Designed to provide an efficient, compact power management solution, this converter is ideal for a variety of applications, including consumer electronics, networking, and industrial systems.

Key Features:

• Input Voltage Range: The TPS54526RSAR operates with an input voltage range of 4.5V to 18V, making it versatile for various power supply configurations.
• Output Current: It can deliver up to 5A of continuous output current, ensuring reliable performance for high-power applications.
• Efficiency: With its integrated low RDS(on) MOSFETs and the D-CAP2 control mode, the device provides a fast transient response, high efficiency, and requires minimal external components.
• Adjustable Switching Frequency: The switching frequency is adjustable from 200kHz to 1.2MHz, allowing designers to optimize the performance based on specific application needs.

Additional Specifications:

• Output Voltage Accuracy: The converter maintains a tight output voltage accuracy of 1% over temperature.
• Protection Features: It includes several protection features such as overcurrent protection (OCP), overvoltage protection (OVP), and thermal shutdown to ensure the safety and reliability of the end application.

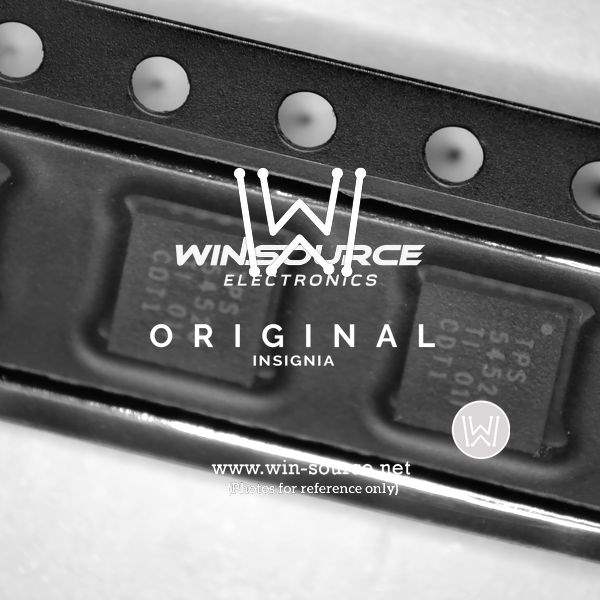

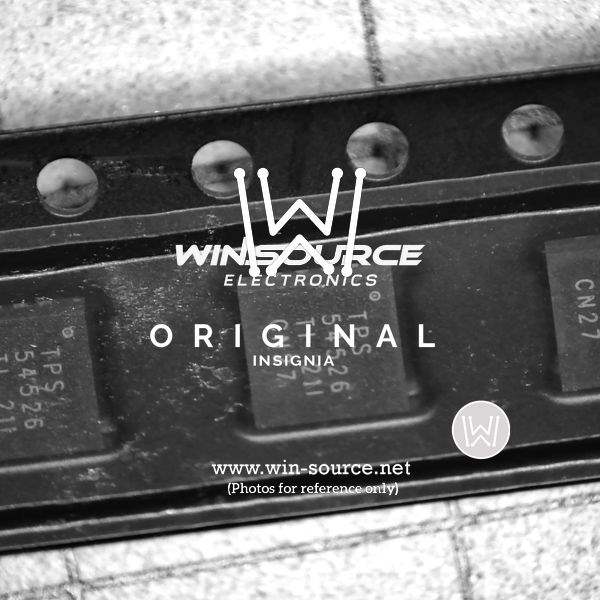

• Package: The TPS54526RSAR is offered in a small 14-pin VQFN package, which is optimal for space-constrained applications.

Applications:

The TPS54526RSAR is suitable for a broad range of applications, including:

• Point of Load (POL) solutions for FPGAs, DSPs, and ASICs
• Consumer electronics such as set-top boxes, TVs, and home networking
• Industrial and automation systems

With its comprehensive set of features and protections, the TPS54526RSAR from Texas Instruments is an excellent choice for designers looking for a robust, efficient, and flexible power management solution.
