TPS560200DBVR: A Compact, Efficient Switching Regulator from Texas Instruments

The TPS560200DBVR by Texas Instruments is a highly integrated synchronous buck (step-down) regulator designed to provide a compact and efficient power management solution for a wide range of applications. This device is part of Texas Instruments' extensive portfolio of voltage regulators, known for their reliability and performance.

Key Features

• Wide Input Voltage Range: The TPS560200DBVR operates over a broad input voltage range from 4.5 V to 17 V, making it suitable for systems powered by a variety of sources, including multi-cell batteries and industrial supplies.
• High-Efficiency Synchronous Switching: With integrated high-side and low-side MOSFETs, this regulator achieves high efficiency, which is beneficial for reducing heat and extending battery life in portable applications.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.76 V to 7 V, allowing for versatility in powering different ICs and peripherals that require various voltage levels.

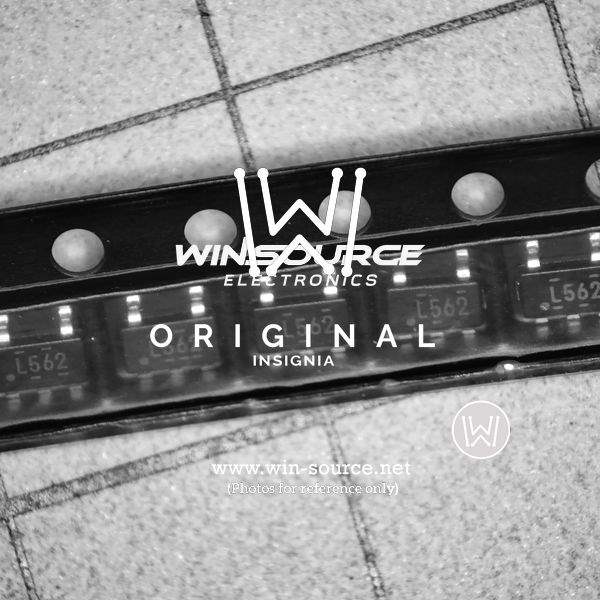

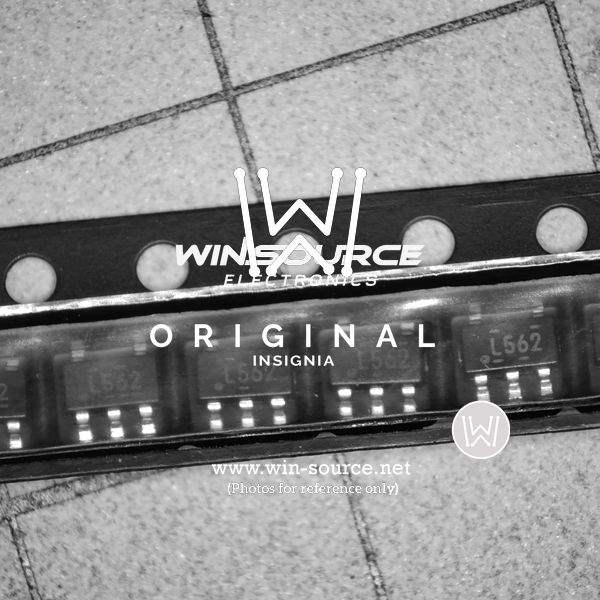

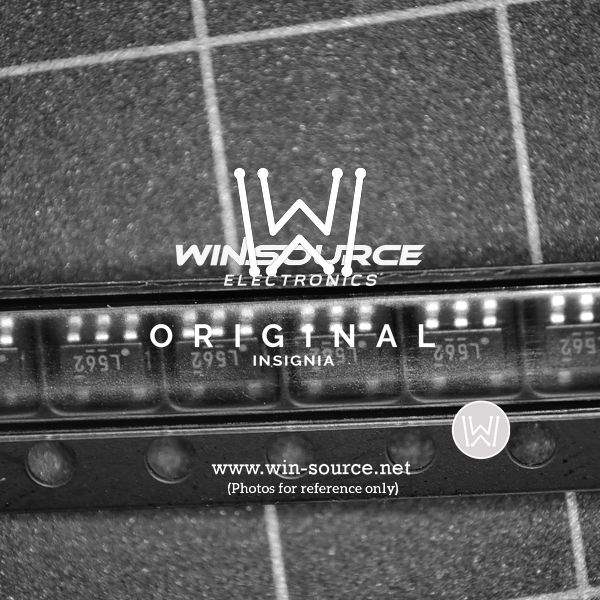

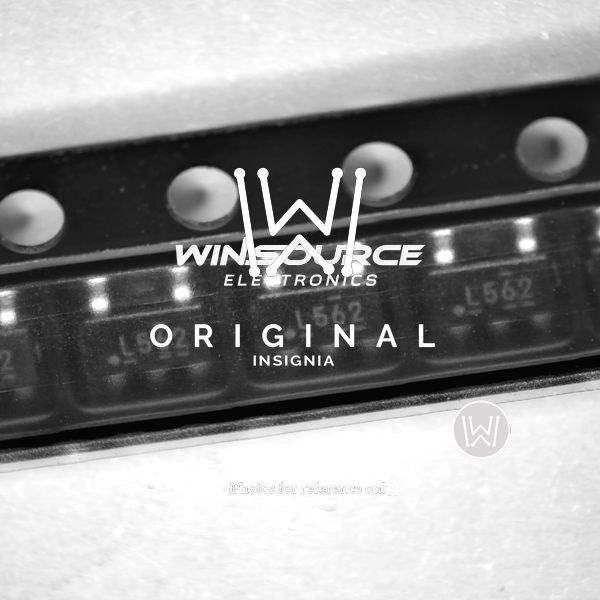

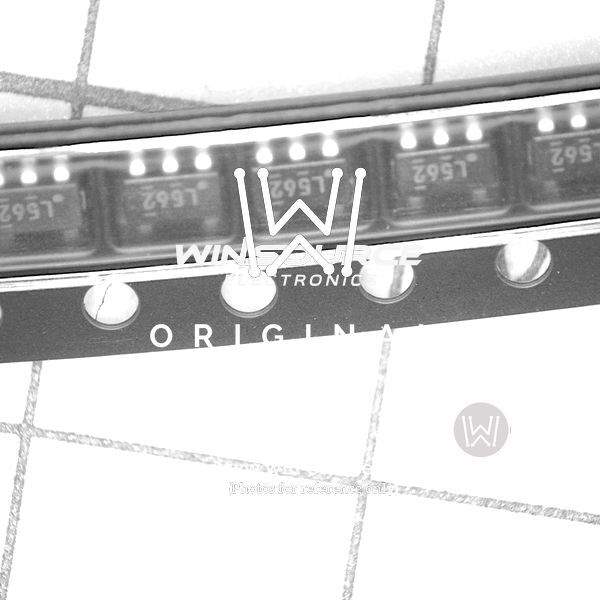

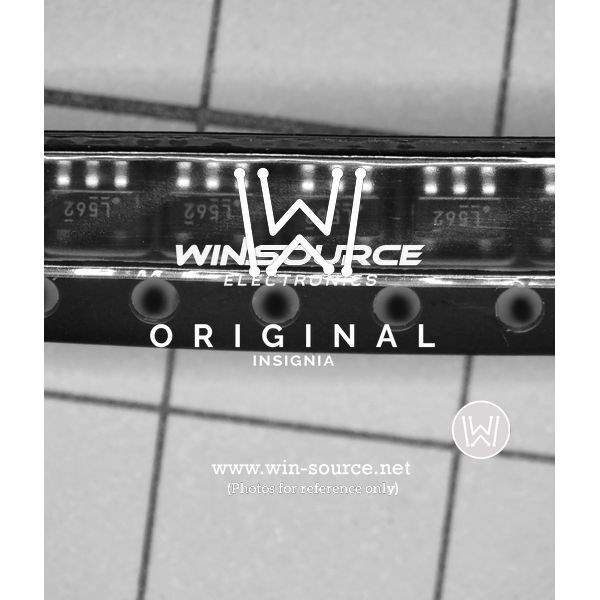

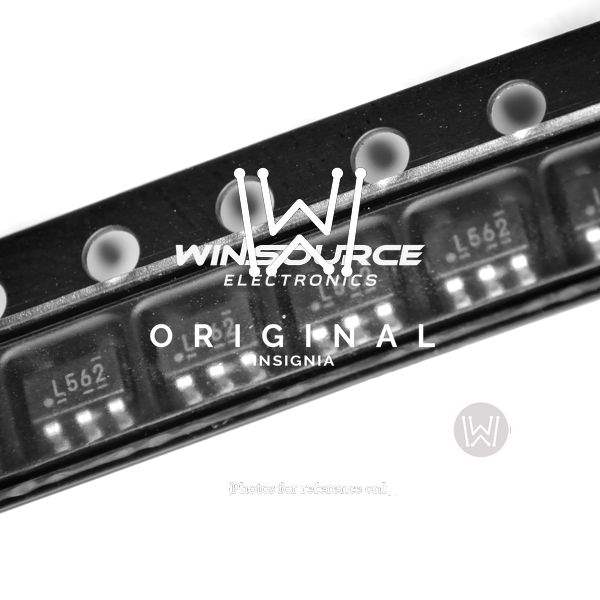

• Compact SOT-23 Package: Housed in a 6-pin SOT-23 package, the TPS560200DBVR is designed for space-constrained applications, providing a minimal footprint on the PCB.
• Thermal and Overcurrent Protection: Built-in thermal shutdown and overcurrent protection mechanisms ensure the safety and longevity of both the regulator and the system it powers.

Applications

The TPS560200DBVR is ideal for a range of applications, including but not limited to:

• Consumer Electronics
• Networking Equipment
• Point-of-Load Conversions
• Set-Top Boxes
• Telecommunication Devices

Design Support

Engineers can take advantage of Texas Instruments' comprehensive design resources to facilitate the integration of the TPS560200DBVR into their projects. This includes access to evaluation modules, application notes, and TI's WEBENCH® Design Center, which provides customized power supply designs that can be tailored to specific application requirements.

In summary, the TPS560200DBVR from Texas Instruments is a versatile, high-efficiency, and compact solution for modern electronic designs requiring a reliable power management system. Its wide input voltage range, adjustable output, and protective features make it a go-to choice for designers looking to optimize their power supply architecture.
