Product Overview: TPS61235PRWLR from Texas Instruments

The TPS61235PRWLR is a high-efficiency, synchronous boost converter designed and manufactured by Texas Instruments (TI), one of the leading companies in the semiconductor industry. This advanced power management integrated circuit (IC) is specifically tailored to meet the needs of portable electronic devices that require a higher voltage from a lower voltage power source.

With an input voltage range of 2.5V to 5.5V, the TPS61235PRWLR is versatile enough to be powered by a variety of sources, including single-cell lithium-ion batteries, which makes it an ideal choice for battery-powered applications. The device can provide a stable output voltage that can be adjusted from 5V to 12V, accommodating a wide array of electronics that demand specific voltages for optimal operation.

The TPS61235PRWLR employs synchronous rectification, which significantly improves efficiency by reducing the power loss associated with diode rectifiers. This feature is particularly beneficial in extending battery life in portable devices. Moreover, the converter operates at a 3.5MHz switching frequency, which allows for the use of small external components, thereby reducing the overall solution size - a critical factor in space-constrained applications.

Another key feature of the TPS61235PRWLR is its Power Save Mode, which maintains high efficiency over a wide load current range. This mode is automatically triggered under light-load conditions, ensuring energy conservation and prolonged battery life. Furthermore, the device incorporates a host of protection features, including over-temperature protection, over-voltage protection, and under-voltage lockout, which safeguard the electronic system from various fault conditions.

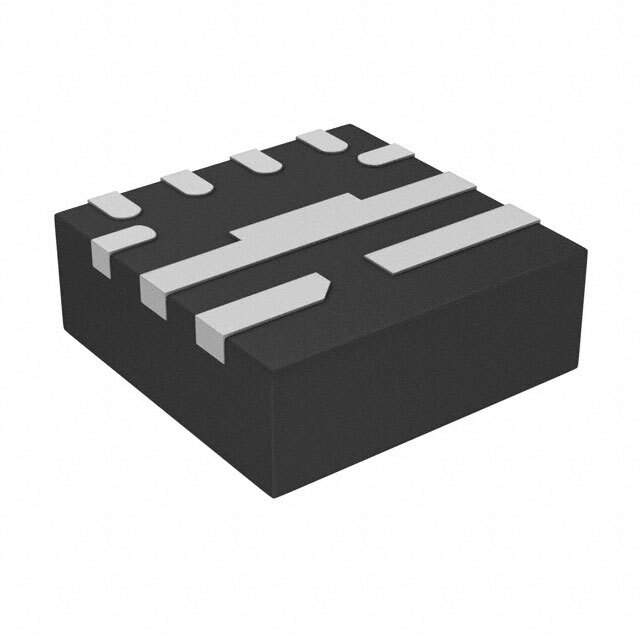

The TPS61235PRWLR is available in a compact QFN package, which is highly suitable for space-constrained applications. Its small footprint and minimal external component requirement make it an excellent power solution for a broad range of applications, including smartphones, tablets, wireless speakers, and other portable electronics that require efficient power conversion.

Overall, the TPS61235PRWLR from Texas Instruments is a robust, efficient, and flexible power solution that is designed to meet the stringent requirements of modern portable electronics.
