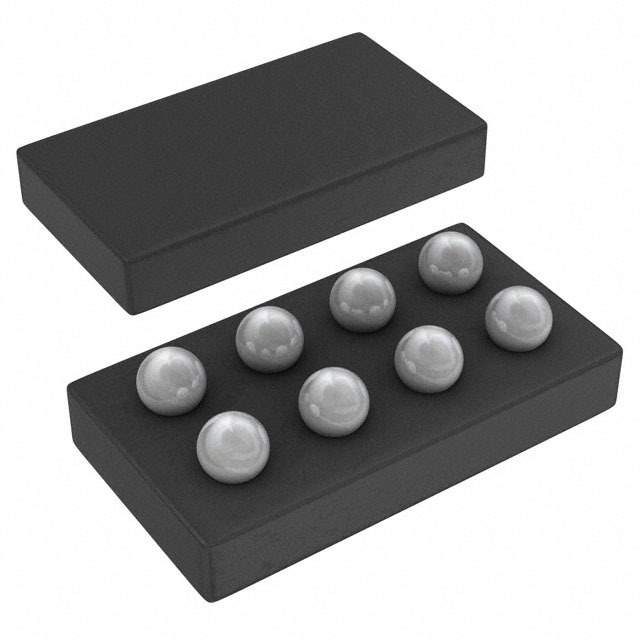

Introducing the TPS62320YZDT from Texas Instruments

The TPS62320YZDT is a high-efficiency synchronous step-down DC-DC converter designed by Texas Instruments. This compact and high-performance chip is ideal for portable and battery-powered applications due to its outstanding power efficiency and advanced power management features.

Key Features

• High Efficiency: The TPS62320YZDT boasts an impressive efficiency rate, which can reach up to 96%. This makes it suitable for devices that require long battery life, as it minimizes power loss during conversion.
• Adjustable Output Voltage: It offers an adjustable output voltage range from 0.75V to 1.8V, which can be set using external resistors. This feature ensures versatility and compatibility with various microprocessors and other digital loads.
• High Output Current: The device can deliver up to 800mA of continuous output current, making it capable of powering a wide range of high-performance portable devices.
• Low Output Voltage Ripple: The converter is designed to produce a low output voltage ripple, which is crucial for maintaining the integrity of sensitive electronic circuits.
• Fast Transient Response: With its excellent transient response, the TPS62320YZDT can quickly adapt to changes in load, ensuring stable operation for the connected device.

Applications

The TPS62320YZDT is particularly well-suited for a variety of applications, including:

• Smartphones and PDAs
• Wireless LAN and Bluetooth devices
• Digital cameras and portable audio players
• Portable medical equipment
• Other battery-powered or handheld devices

Advanced Features

In addition to its core capabilities, the TPS62320YZDT is equipped with several advanced features that enhance its performance:

• Power Save Mode: It includes a power save mode that reduces quiescent current during light load conditions, further extending battery life.
• Thermal Protection: The chip comes with built-in thermal shutdown protection to prevent damage from overheating.
• Small Package Size: Its small 8-pin SON package with a 2x2 mm footprint allows for a compact design, which is essential for space-constrained applications.

The TPS62320YZDT from Texas Instruments is an exemplary solution for designers looking to optimize power efficiency without compromising performance or space in their portable devices.
