The TPS65982ABZQZR from Texas Instruments is a highly sophisticated and versatile USB Type-C and Power Delivery (PD) controller designed to simplify the implementation of USB Type-C interfaces with PD capabilities. As a standalone device, it can handle the USB PD negotiation, Alternate Mode discovery, and Power Role Swap procedures. This makes it an essential component for a wide range of applications, from laptops and tablets to smartphones and other portable devices that require a USB Type-C connection with PD functionality.

Key Features

• Integrated Power Path: The TPS65982ABZQZR includes an integrated power path that allows for seamless power switching and management, ensuring that devices can charge efficiently and safely.
• Programmable Power Supply: It supports multiple programmable power supply (PPS) profiles, enabling devices to negotiate for the exact power level needed, optimizing power delivery and battery charging.
• Alternate Mode Support: The controller is capable of supporting various Alternate Modes, allowing for additional functionality such as video output or data transfer over the same USB Type-C connector.
• Configurable I/O: With configurable I/O pins, the TPS65982ABZQZR can be adapted to a variety of platform requirements, making it a flexible solution for different design needs.

Application Areas

The versatility of the TPS65982ABZQZR makes it suitable for a broad spectrum of applications, including:

• Portable Computing Devices
• Smartphones and Tablets
• Docking Stations
• Monitors and Peripherals with USB Type-C
• Power Adapters and Chargers

Technical Specifications

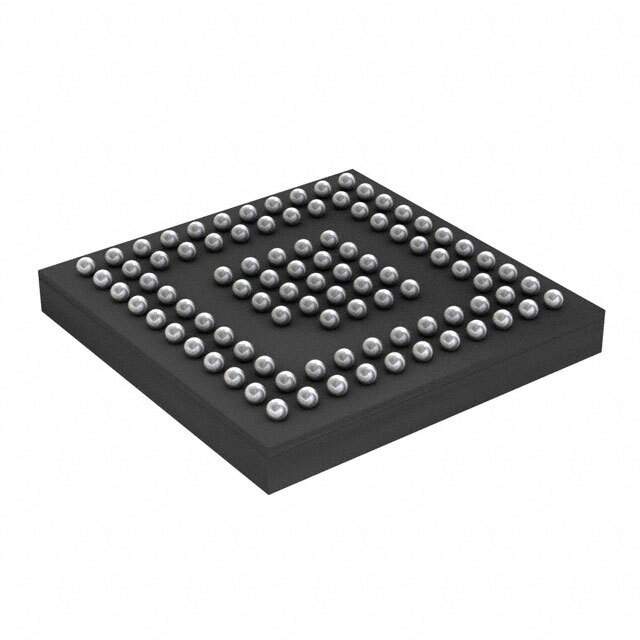

The device operates over a wide supply voltage range and is available in a compact 98-ball BGA package, making it suitable for space-constrained applications. It is designed to manage USB Type-C ports with the USB PD protocol, enabling up to 100W of power delivery for fast charging and efficient power management.

For engineers and designers looking to integrate USB Type-C and PD functionality into their products, the TPS65982ABZQZR offers a comprehensive solution that simplifies the design process and enhances the end-user experience with its robust feature set and performance capabilities.
