Product Overview: Texas Instruments TS3A44159RGTR

The Texas Instruments TS3A44159RGTR is a versatile, high-performance analog switch that is a part of TI's extensive switch and multiplexer product line. This quad single-pole double-throw (4-SPDT) switch is designed for 2.3-V to 3.6-V VCC operation, making it suitable for a wide range of applications including signal routing in audio, video, and data communication systems.

Key Features

• Low On-State Resistance (RON): The device features a low on-state resistance typically around 0.5 Ω, which minimizes signal distortion and ensures high signal integrity.
• Wide Bandwidth: With a bandwidth of 300 MHz, the TS3A44159RGTR can handle high-speed signals, making it ideal for advanced digital applications.
• Low Crosstalk: Crosstalk between channels is minimized, which is critical for maintaining signal quality in multiplexing operations.
• Low Power Consumption: The device has been designed for low power consumption, with a supply current of only 0.1 µA (typical), which is beneficial for battery-powered devices.
• Bidirectional Signal Flow: Signals can flow in both directions through the switch, providing flexibility in signal routing.
• 1.8-V Logic Compatible: The switch logic is compatible with 1.8-V logic inputs, which allows for easy interfacing with modern low-voltage microprocessors and microcontrollers.

Applications

The TS3A44159RGTR is suitable for various applications, including but not limited to:

• Cellular phones
• PDAs
• Portable media players
• Notebook computers
• Signal routing in audio and video equipment
• Communication systems

Package and Quality

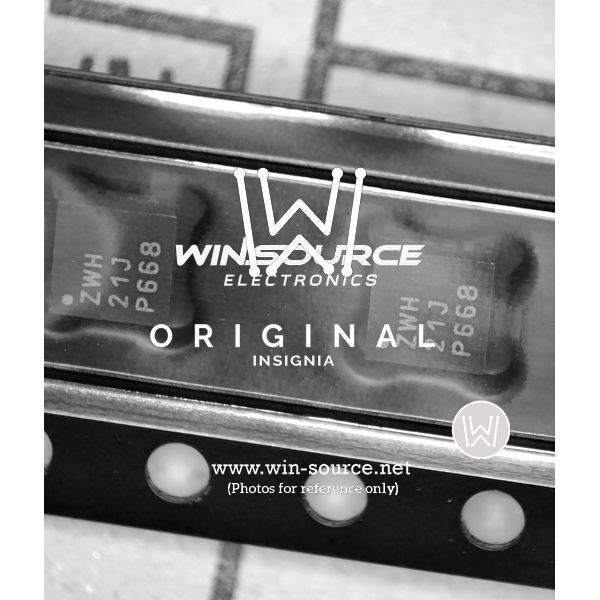

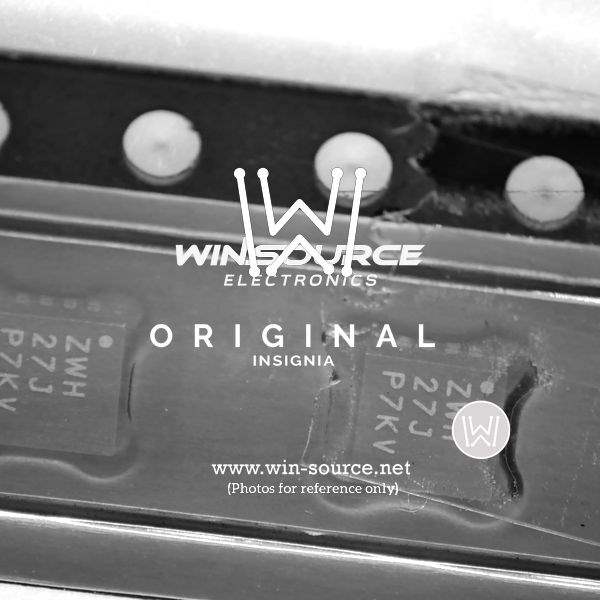

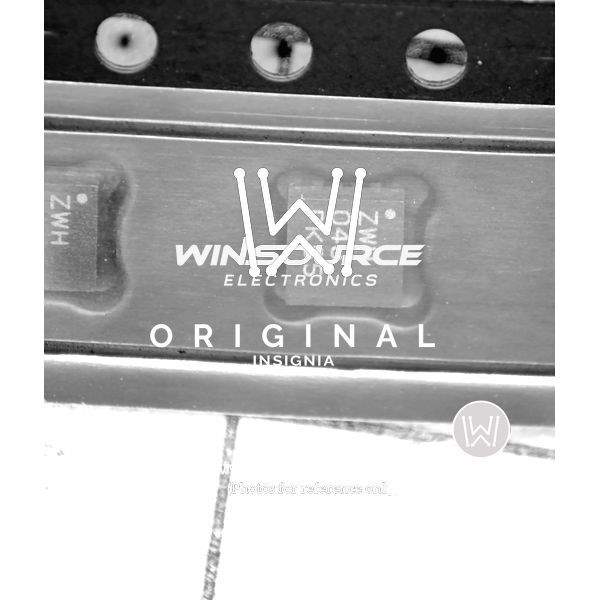

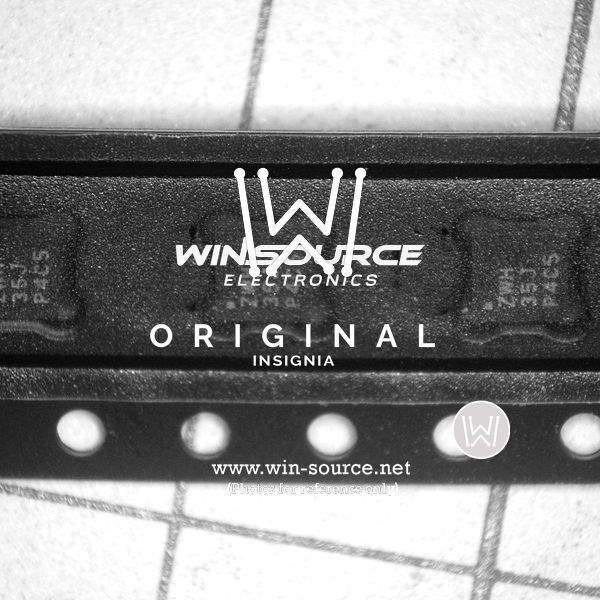

This device comes in a small, surface-mount, 16-pin QFN package, which is ideal for space-constrained applications. The TS3A44159RGTR is also characterized for operation from -40°C to 85°C, ensuring reliability across a wide range of environmental conditions. Texas Instruments is committed to high-quality manufacturing standards and the device is RoHS compliant, adhering to environmental regulations for hazardous substances.

With its combination of features, the TS3A44159RGTR from Texas Instruments is an excellent choice for designers looking to optimize performance and power efficiency in their switching applications.
