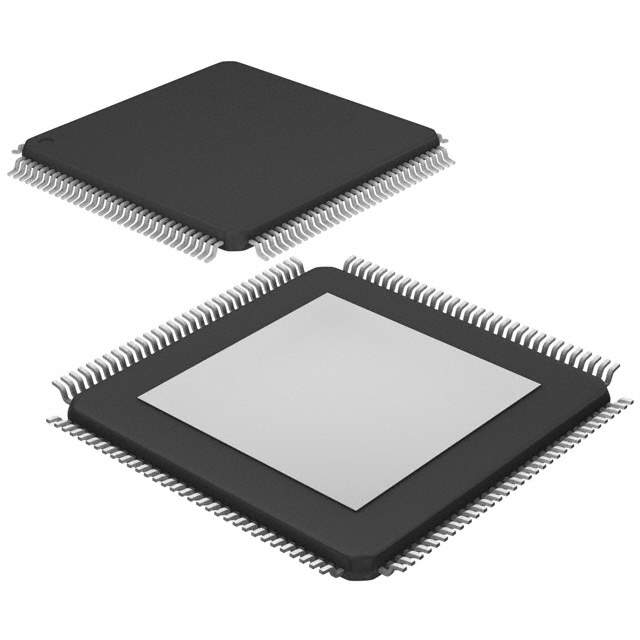

The TSB43AB23PDT is a high-performance integrated circuit from Texas Instruments, designed to facilitate seamless data transfer between devices in a FireWire (IEEE 1394) network. This innovative product is engineered to support the demanding requirements of high-speed serial bus protocols, making it an ideal choice for a wide range of applications, including consumer electronics, computer peripherals, and multimedia systems.

Key Features

• IEEE 1394-1995 Compliant: The TSB43AB23PDT adheres to the IEEE 1394-1995 standard and is compatible with the P1394a Supplement 4.0, ensuring reliable data transfer at 100, 200, or 400 Mbps.
• Integrated PHY and Link Layers: The device incorporates both the physical layer (PHY) and the link layer, providing a complete solution for IEEE 1394 interface with minimal external components.
• Data Strobe Encoding: Utilizes data strobe encoding techniques, which enhances signal integrity and provides robust data communication over cable lengths up to 4.5 meters.
• Flexible Port Configuration: Features two cable ports and one internal port, offering versatility in connecting multiple devices in a daisy-chain or tree structure.

Applications

• Desktop and Laptop Computers
• Digital Video Camcorders and Cameras
• External Storage Devices
• Printers and Scanners
• Home Entertainment Systems

Advanced Technical Specifications

The TSB43AB23PDT is built with advanced technical specifications that cater to the needs of modern high-speed digital interfaces. It operates on a 3.3V power supply while providing 5V tolerant I/Os, ensuring compatibility with a broad range of system designs. The device also supports hot-plugging and is equipped with internal power-down functionality to conserve energy when not in active use.

Quality and Reliability

As with all Texas Instruments products, the TSB43AB23PDT is manufactured with a commitment to quality and reliability. It undergoes rigorous testing and validation to meet the high standards expected by industry professionals and consumers alike. With Texas Instruments' reputation for excellence, users can trust the TSB43AB23PDT to deliver consistent performance and durability.
