Product Overview: TXS0108ERGYR by Texas Instruments

The TXS0108ERGYR is a state-of-the-art, 8-bit bidirectional voltage level translator from Texas Instruments, designed to provide seamless voltage level translation between different logic level devices. This device is part of the TXS series, which is known for its high-speed, non-inverting, and auto-direction sensing features, making it an ideal choice for multi-voltage digital system applications.

Key Features

• Voltage Level Translation: The TXS0108ERGYR is capable of translating between two different voltage domains ranging from 1.2V to 3.6V on the A side (VCCA) and 1.65V to 5.5V on the B side (VCCB). This makes it suitable for interfacing between low-voltage microcontrollers and higher voltage peripheral devices.
• Auto-Direction Sensing: The device automatically senses and adjusts the direction of data flow without the need for a direction control signal, simplifying the interface and reducing control pin requirements.
• Low Standby Current: It features a low standby current which is beneficial for battery-powered applications where power conservation is critical.
• High-Speed Operation: With its high-speed operation, it is capable of supporting up to 100Mbps push-pull applications and up to 33Mbps open-drain applications, ensuring swift data transfer between devices.

Applications

The TXS0108ERGYR is versatile and can be used in a wide range of applications, including but not limited to:

• Mobile Phones
• Media Players
• GPS Devices
• Tablets
• Notebooks
• Personal Digital Assistants (PDAs)

Package and Quality

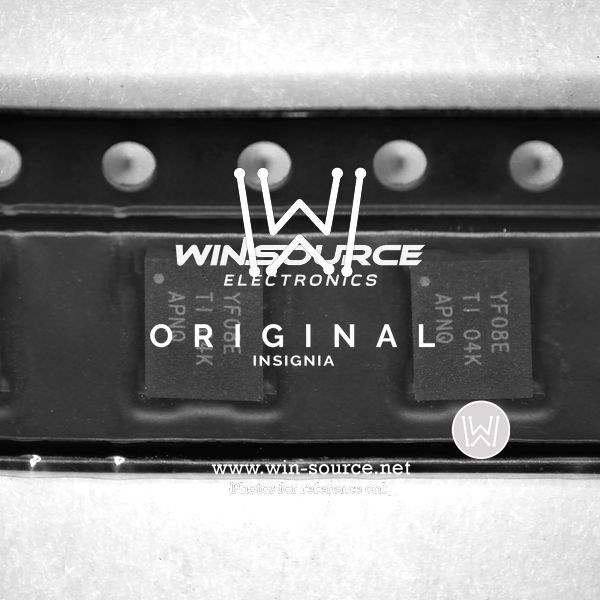

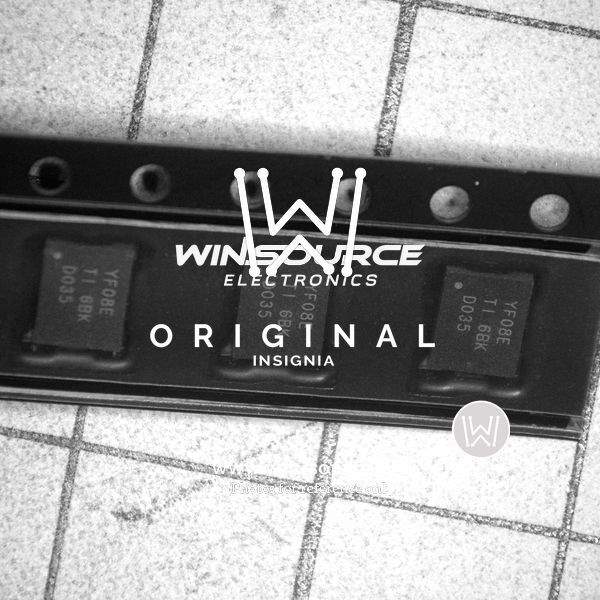

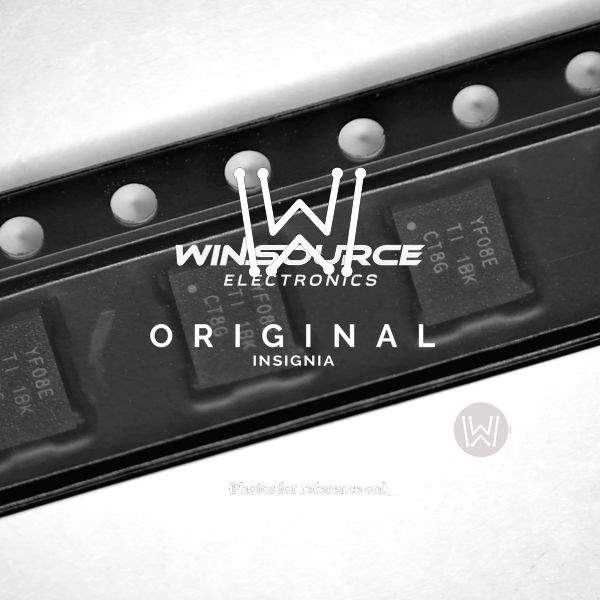

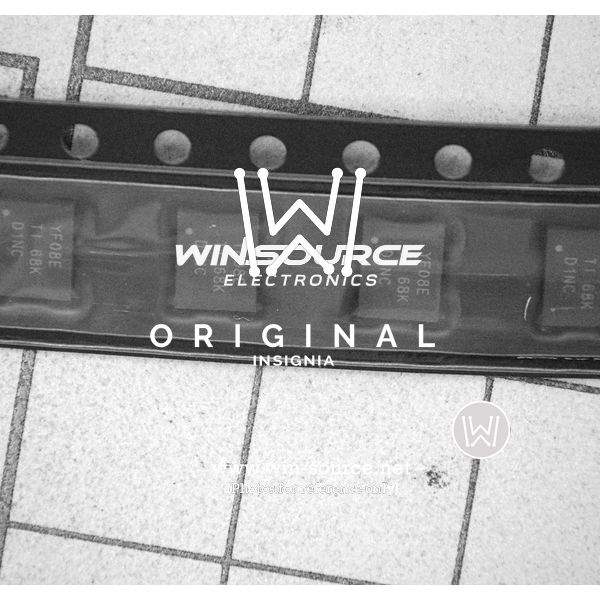

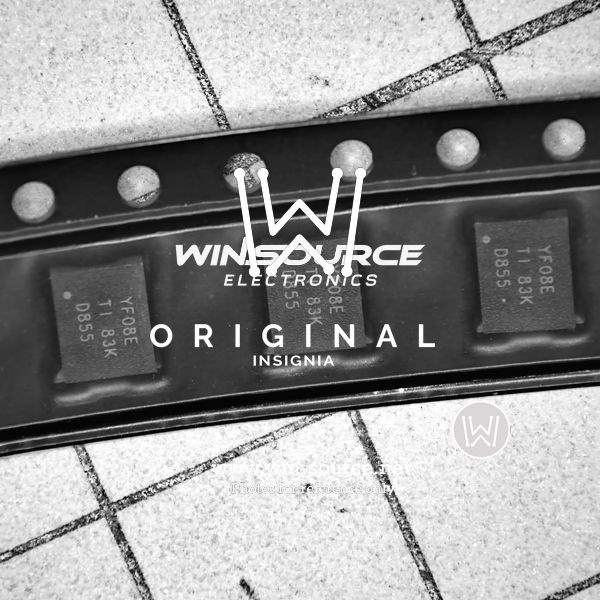

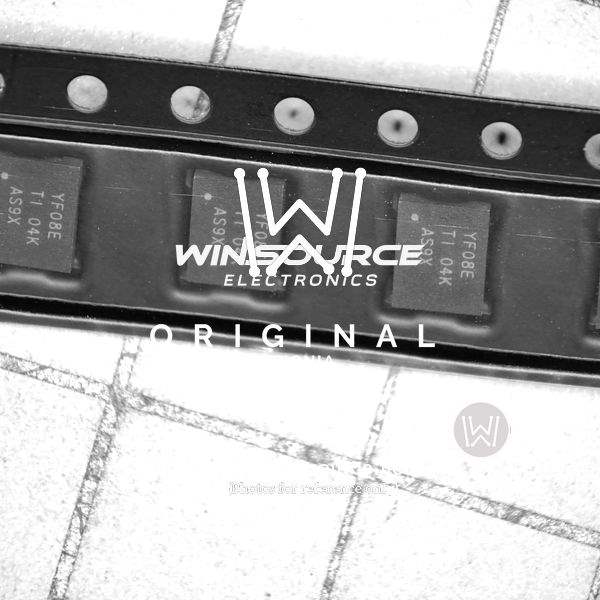

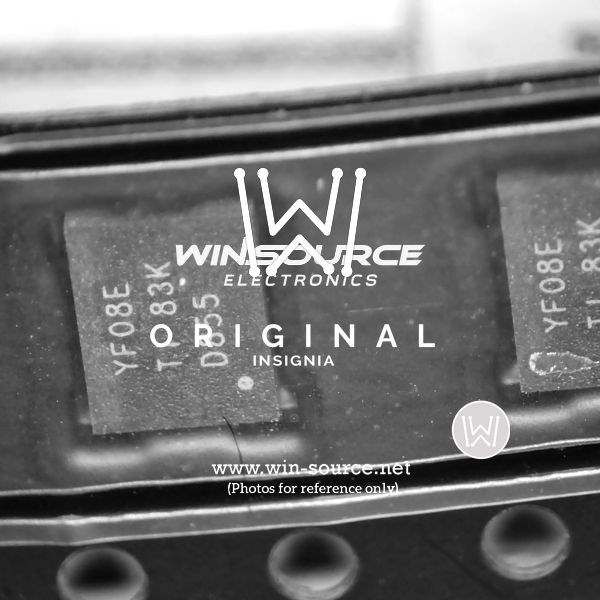

This device is available in a small-outline VQFN-20 package, which is ideal for space-constrained applications. It is also specified for the commercial temperature range of –40°C to 85°C, ensuring reliable performance across various environments. Texas Instruments is committed to high-quality standards, and the TXS0108ERGYR is no exception, offering both reliability and performance for interfacing digital systems.
