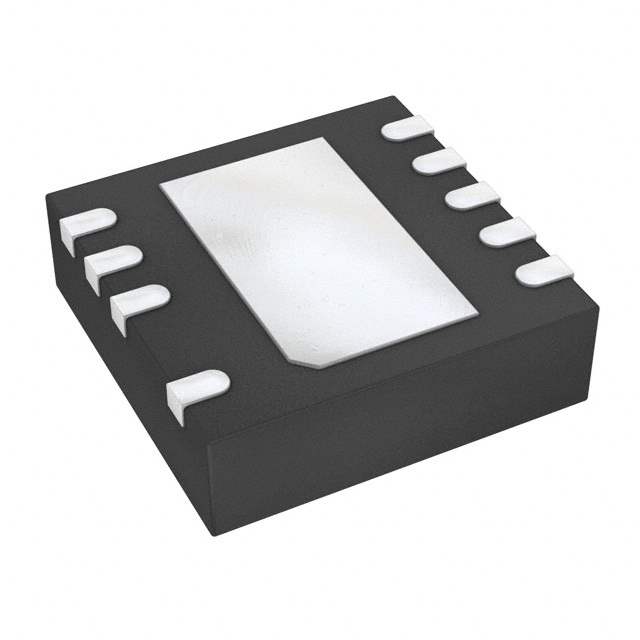

Product Overview: Texas Instruments UCC27200ADRCR

The UCC27200ADRCR is a high-performance, half-bridge gate driver from Texas Instruments designed for DC to DC converters and other power supply applications. This advanced driver IC is capable of driving N-channel power MOSFETs and IGBTs with optimal efficiency and precision. The device is housed in a compact 8-pin SON package, making it suitable for space-constrained applications.

With a robust peak output current of 4A for both the high-side and low-side drivers, the UCC27200ADRCR ensures powerful and reliable switching performance. The driver IC is engineered to operate at a wide supply voltage range from 10V to 20V, providing flexibility for various system designs. It also features a bootstrap diode for high-side gate drive, which minimizes external component count and simplifies the circuit layout.

The UCC27200ADRCR incorporates several protection features to enhance system reliability. These include under-voltage lockout (UVLO) for both the high-side and low-side to ensure the gates are not partially turned on during low supply conditions, and over-temperature shutdown to protect the device in extreme conditions. Additionally, its 3.3V and 5V compatible inputs with hysteresis allow for direct interfacing with microcontrollers or DSPs without the need for additional level shifting.

One of the key advantages of this gate driver is its ability to handle high-voltage applications up to 120V, making it an excellent choice for automotive, industrial, and telecommunications power systems. The UCC27200ADRCR also boasts a fast propagation delay and matched delay times, which are critical for high-frequency operation and ensure synchronized switching to reduce dead-time and minimize power loss.

In summary, the Texas Instruments UCC27200ADRCR is a versatile and robust half-bridge gate driver that offers high current capability, wide voltage range, and integrated protection features. It is an ideal component for engineers looking to design efficient and reliable power conversion systems.

Note: For detailed specifications and application guidelines, refer to the Texas Instruments UCC27200ADRCR datasheet and user manuals before integrating this device into your design.
