The TA78L005AP(F) is a positive voltage regulator manufactured by Toshiba Semiconductor and Storage. It is designed to provide a stable 5V output voltage from a higher input voltage. This regulator is part of the TA78L00 series, known for its simplicity, reliability, and ease of use in various electronic circuits.

Applications

• Power supplies for microcontrollers: Provides a stable 5V supply for various microcontrollers and digital logic circuits.
• Battery-powered devices: Used in portable devices to maintain a constant voltage output despite variations in battery voltage.
• Linear regulators for electronic circuits: Provides a regulated voltage for analog circuits, sensors, and operational amplifiers.
• Consumer electronics: Commonly found in appliances, audio equipment, and other consumer devices requiring a regulated 5V supply.
• DIY electronics projects: Suitable for hobbyists and students building electronic projects requiring a stable voltage source.

Features

• Fixed 5V Output: Provides a precise and stable 5V regulated output voltage.
• Low Quiescent Current: Consumes minimal current when no load is present, improving efficiency.
• Short-Circuit Protection: Protects the regulator and connected circuitry from damage due to short circuits.
• Thermal Overload Protection: Shuts down the regulator if the internal temperature exceeds safe limits.
• Compact Package: Available in a small package, suitable for space-constrained applications.

Benefits

• Stable Voltage Supply: Ensures reliable operation of electronic circuits by providing a constant voltage.
• Simplified Circuit Design: Reduces complexity by providing a regulated voltage source, eliminating the need for discrete components.
• Overload Protection: Prevents damage from short circuits and thermal overload, increasing system reliability.
• Energy Efficiency: Low quiescent current minimizes power consumption, extending battery life in portable devices.
• Easy Integration: Simple to use with minimal external components required.

Additional Details

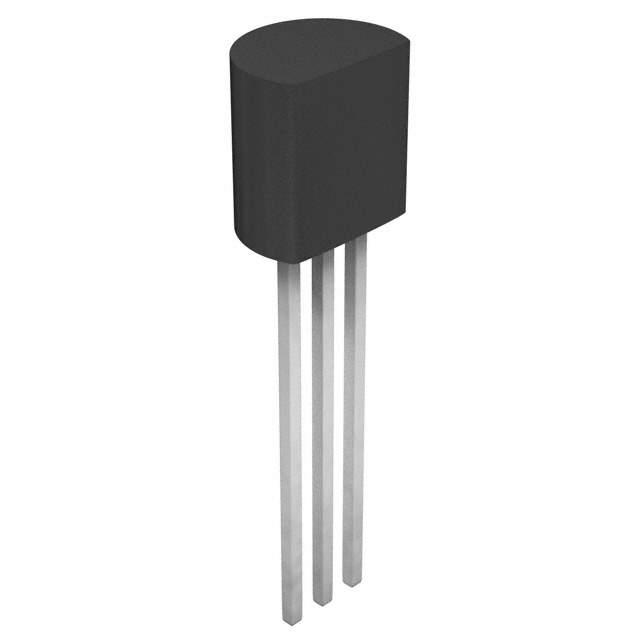

The TA78L005AP(F) typically requires a minimum input voltage slightly higher than 5V (e.g., 7V) to maintain regulation. It can typically handle input voltages up to 30V. The output current capability is typically around 100mA. It is important to refer to the datasheet for the specific ratings and application guidelines. This regulator is available in a through-hole package, such as a TO-92 package, making it easy to prototype and solder.
