The TA78L05F(TE12L is a three-terminal positive voltage regulator manufactured by Toshiba Semiconductor and Storage. This regulator is designed to provide a stable +5V output voltage with a maximum output current of typically 100mA, making it suitable for a wide array of small to medium current applications.

Applications

• Microcontroller Power Supplies: Provides a stable 5V supply for microcontrollers.
• Sensor Power Supplies: Powers various sensors requiring a regulated 5V supply.
• Logic Circuit Power Supplies: Provides a regulated 5V for logic circuits.
• Battery Chargers: Used in linear battery charger circuits to provide a stable voltage.
• General Purpose Regulation: A general-purpose regulator for various electronic circuits needing a stable 5V supply.

Features

• Fixed +5V Output: Provides a stable and regulated 5V output voltage.
• Output Current: Supports output currents up to 100mA.
• Internal Thermal Overload Protection: Protects the regulator from overheating due to excessive power dissipation.
• Internal Short-Circuit Current Limiting: Limits the output current during a short-circuit condition.
• Small Package: Available in a small surface-mount package for space-constrained applications.

Benefits

• Stable Voltage Regulation: Provides a stable and accurate 5V output, ensuring reliable operation of downstream circuits.
• Overload Protection: Thermal overload and short-circuit protection enhance the regulator's reliability and protect connected devices.
• Easy to Use: Requires minimal external components for operation, simplifying circuit design.
• Compact Size: Small package size allows for use in space-sensitive applications.
• Cost-Effective: Provides a cost-effective solution for voltage regulation.

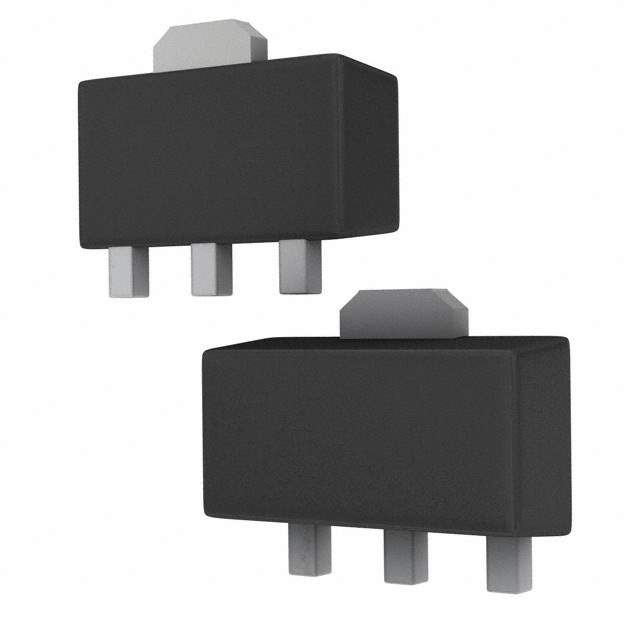

The TA78L05F(TE12L voltage regulator is typically packaged in a small surface-mount package such as a SOT-89 or similar. Key specifications include the input voltage range (typically up to 30V), output voltage accuracy, and quiescent current. It's a popular choice for providing regulated 5V supplies in a wide range of consumer and industrial electronic devices. Additional features include the ability to add external capacitors to further improve stability, though many designs function effectively without them.
