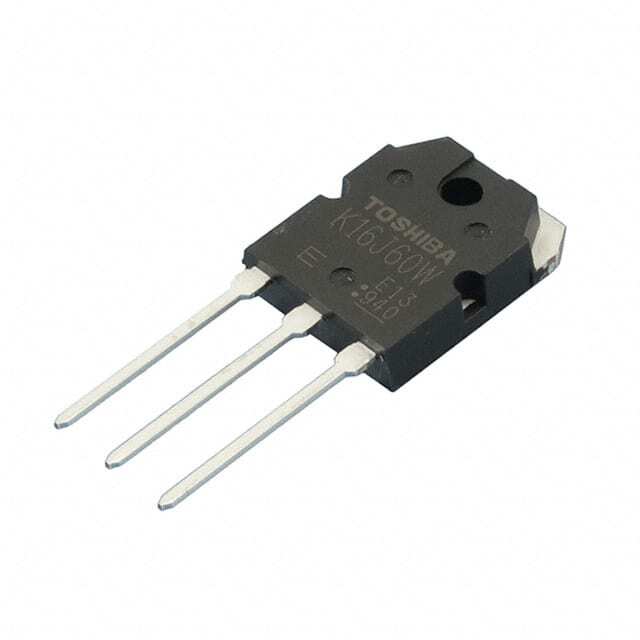

TK16J60W,S1VE

Get a Quote

Part No	TK16J60W,S1VE
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Transistors - FETs, MOSFETs - RF
Description	X35 PB-F POWER MOSFET TRANSISTOR / N-Channel 600 V 15.8A (Ta) 130W (Tc) Through Hole TO-3P(N)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Toshiba Semiconductor and Storage
Package	Tube
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	15.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	190mOhm @ 7.9A, 10V
Vgs(th) (Max) @ Id	3.7V @ 790µA
Gate Charge (Qg) (Max) @ Vgs	38 nC @ 10 V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1350 pF @ 300 V
Power Dissipation (Max)	130W (Tc)
Temperature Range - Operating	150°C
Mounting Type	Through Hole
Supplier Device Package	TO-3P(N)
Package / Case	TO-3P-3, SC-65-3
Base Product Number	TK16J60
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	TK16J60W,S1VE(S,264-TK16J60WS1VE
Standard Package	25
Win Source Part Number	1019254-TK16J60W,S1VE
Ultra Librarian 3D Model	Ultra Librarian TK16J60W,S1VE CAD Model

Alternative Products

Description

The electronic component with Id 950011 is a MOSFET (Metal Oxide) transistor manufactured by Toshiba Semiconductor and Storage.

Channel Type: N-Channel FET
Drain to Source Voltage (Vdss): 600 V
Continuous Drain Current (Id): 15.8A @ 25°C
Maximum On-Resistance (Rds On): 190mOhm @ 7.9A, 10V
Gate Charge (Qg) (Max) @ Vgs: 38 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1350 pF @ 300 V
Maximum Gate-Source Voltage (Vgs): ±30V
Operating Temperature: 150°C
Package: TO-3P-3, SC-65-3
Supplier Device Package: TO-3P(N)
