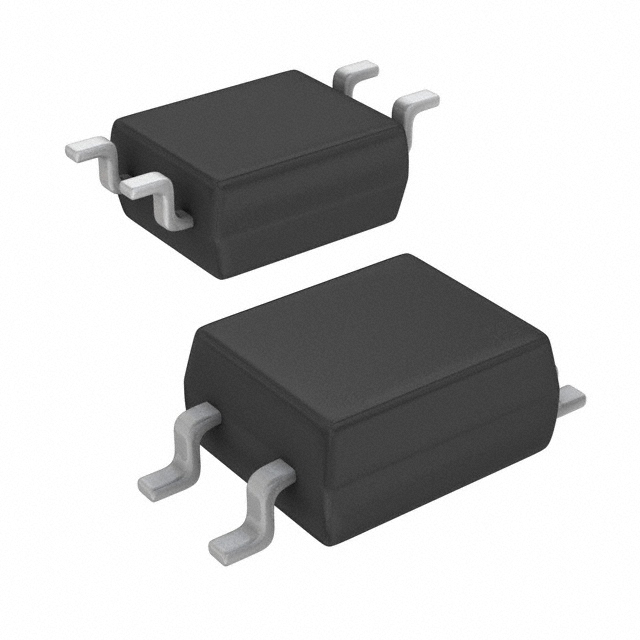

The TLP181(GB-TPL,F) is a Photorelay manufactured by Toshiba Semiconductor and Storage, designed for applications that require electrical isolation and reliable switching. This device consists of a GaAlAs infrared light-emitting diode (LED) on the input side, optically coupled to a MOSFET on the output side. This configuration allows for control of the output circuit without a direct electrical connection, providing high isolation voltage and noise immunity.

Applications

• Industrial Control: Used in programmable logic controllers (PLCs) and other industrial automation equipment for isolating control signals.
• Power Supplies: Provides isolation between primary and secondary circuits in power supplies.
• Test and Measurement Equipment: Employed in test equipment to isolate sensitive circuitry and prevent ground loops.
• Medical Devices: Ensures patient safety by providing isolation in medical equipment.
• Solid State Relays (SSRs): Functions as a solid-state relay for switching AC or DC loads, offering longer life and faster switching compared to electromechanical relays.

Features

• High Isolation Voltage: Provides a high isolation voltage rating, ensuring safe operation in high-voltage environments.
• Low On-Resistance: Features a low on-resistance, minimizing voltage drop and power dissipation.
• Fast Switching Speed: Offers fast turn-on and turn-off times, making it suitable for high-frequency switching applications.
• Surface Mount Package: Comes in a compact surface-mount package, saving board space and facilitating automated assembly.
• RoHS Compliant: Complies with the Restriction of Hazardous Substances (RoHS) directive, making it environmentally friendly.

Benefits

• Enhanced Safety: Provides electrical isolation, enhancing safety for users and equipment in high-voltage environments.
• Reduced Power Consumption: Consumes minimal power, contributing to overall system energy efficiency.
• Increased System Reliability: Offers a long lifespan and high reliability, reducing maintenance and replacement costs.
• Simplified Design: Simplifies circuit design with its easy-to-use interface and compact form factor.
• Improved Performance: Delivers fast and precise switching, improving overall system performance.

The TLP181(GB-TPL,F) is designed for surface mounting, enabling automated assembly processes. Its robust design and high-performance characteristics make it a suitable choice for demanding applications where isolation, reliability, and speed are critical factors.
