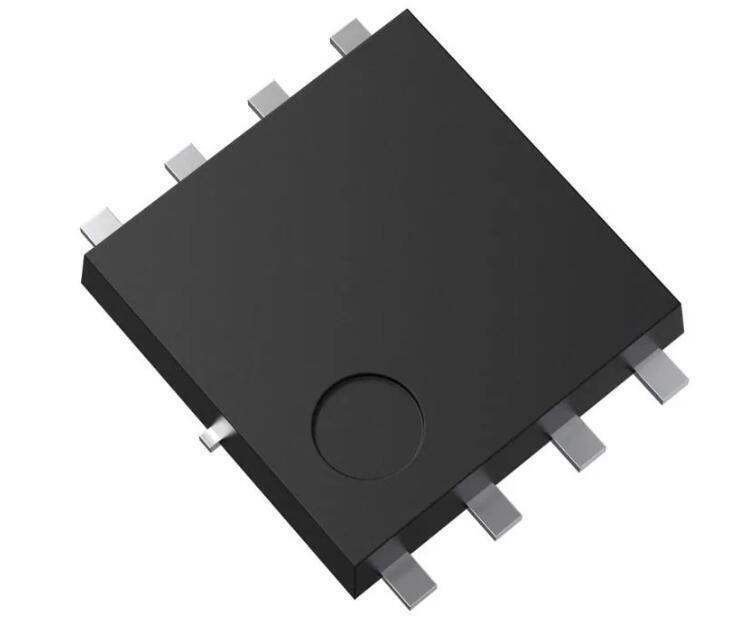

Same model may have multiple batches, images only for reference.
TPCA8120,L1Q Toshiba
Same model may have multiple batches, images only for reference.

TPCA8120,L1Q

Part No TPCA8120,L1Q
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors – FETs, MOSFETs – Single
Description MOSFETs LVMOS SOP-8-ADV
Datasheet
TPCA8120,L1Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Toshiba
Category MOSFETs
Technology Si
Mounting Style SMD/SMT
Package / Case SOP-8
Transistor Polarity P-Channel
Number of Channels 1 Channel
Id - Continuous Drain Current 45 A
Vds - Drain-Source Breakdown Voltage 30 V
Vgs - Gate-Source Voltage - 25 V, 20 V
Vgs th - Gate-Source Threshold Voltage 2 V
Qg - Gate Charge 190 nC
Ultra Librarian 3D Model Ultra Librarian TPCA8120,L1Q CAD Model

Description

MOSFETs LVMOS SOP-8-ADV
