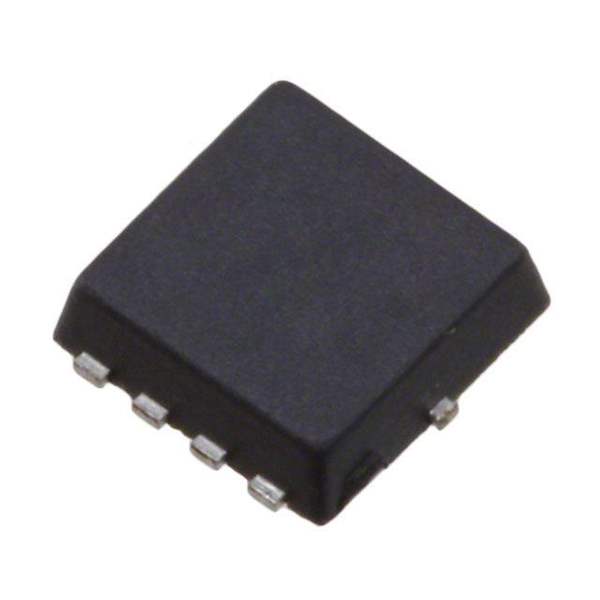

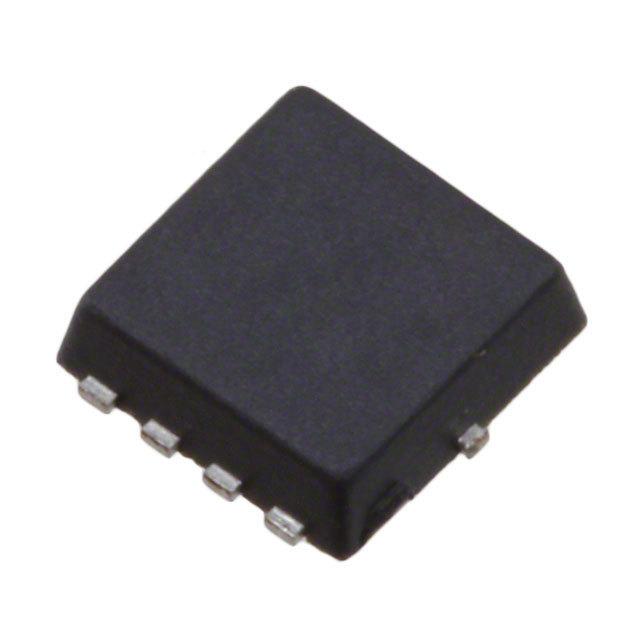

TPN4R203NC,L1Q

Name: TPN4R203NC,L1Q
Brand: Toshiba Semiconductor and Storage
SKU: 735418
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TPN4R203NC,L1Q
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N CH 30V 23A 8TSON-ADV
Datasheet	TPN4R203NC,L1Q Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVIII
Packaging	Reel - TR
Channel Type Type	N
Technology	MOSFET
Drain Source Voltage	30V
Current - Continuous Drain (Id) @ 25°C	23A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Vgs(th) (Maximum) @ Id	2.3V @ 200μA
Gate Charge (Qg) (Maximum) @ Vgs	24nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds	1370pF @ 15V
Vgs (Maximum)	±20V
Power Dissipation (Maximum)	700mW (Ta), 22W (Tc)
Rds On (Maximum) @ Id, Vgs	4.2 mOhm @ 11.5A, 10V
Operating Temperature Range	150°C (TJ)
Mounting	SMD
Manufacturer Package	8-TSON Advance (3.3x3.3)
Package	8-PowerVDFN
Manufacturer Homepage	www.semicon.toshiba.co.jp/eng
Win Source Part Number	735418-TPN4R203NC,L1Q
Popularity	Medium
Supply and Demand Status	Balance
Family Name	TPN4R203NC
ECCN	EAR99
Country of Origin	Malaysia
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian TPN4R203NC,L1Q CAD Model

Alternative Products

Description

The Toshiba Semiconductor and Storage TPN4R203NC,L1Q is a MOSFET component from the U-MOSVIII series by Toshiba Semiconductor and Storage.

Current Continuous Drain: 23A @ 25°C
Maximum Power Dissipation: 700mW (Ta), 22W (Tc)
Package: 8-PowerVDFN
Mounting: SMD
Technology: MOSFET
Channel Type: N
Gate Charge (Qg) maximum @ Vgs: 24nC @ 10V
Input Capacitance (Ciss) maximum @ Vds: 1370pF @ 15V
ROHS Compliant: Yes
Popularity: Medium
Supply and Demand Status: Balanced
