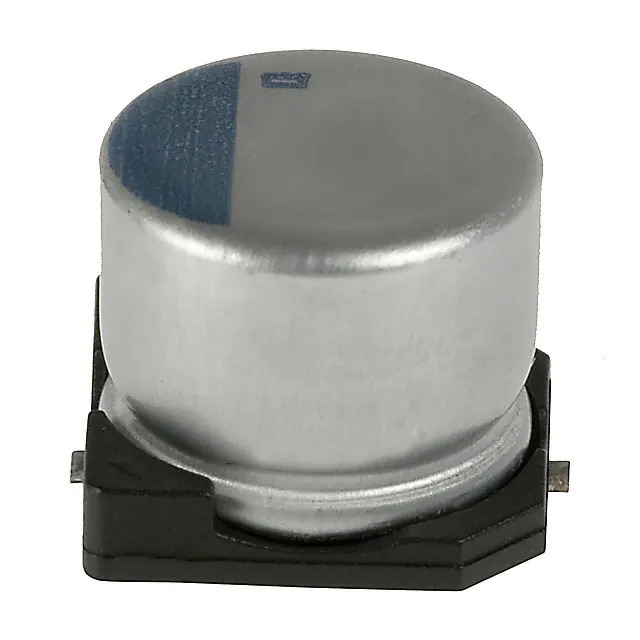

Same model may have multiple batches, images only for reference.
APXH200ARA470MH70G United Chemi-Con
Same model may have multiple batches, images only for reference.

APXH200ARA470MH70G

Part No APXH200ARA470MH70G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 47UF 20% 20V SMD / 47 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 45mOhm 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXH
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 45mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 2 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.264" (6.70mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359491-APXH200ARA470MH70G
Ultra Librarian 3D Model Ultra Librarian APXH200ARA470MH70G CAD Model

Description

The 1359491-APXH200ARA470MH70G is a polymer capacitor from United Chemi-Con.

  • Series: NPCAP™-PXH
  • Capacitance: 47 μF
  • Voltage Rating: 20 V
  • Application: General-Purpose
  • Temperature Range: -55°C to 125°C
  • Equivalent Series Resistance (ESR): 45 mOhm
  • Ripple Current (High Frequency): 2 A @ 100 kHz
  • Package Type: Radial, Can - SMD
  • Mounting Type: Surface-Mounted
  • Size: 0.315" diameter (8.00mm)
  • Maximum Seated Height: 0.264" (6.70mm)
  • REACH: Unaffected
  • ECCN: EAR99
