Same model may have multiple batches, images only for reference.

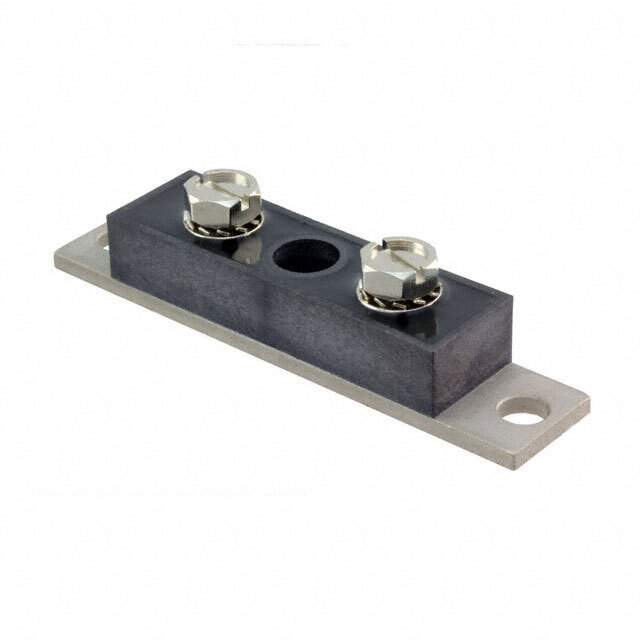

200CNQ040 Real Image
Same model may have multiple batches, images only for reference.

200CNQ040

Part No 200CNQ040
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 40V 100A TO244AB
Datasheet
200CNQ040 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Diode Array 1 Pair Common Cathode Schottky 40 V 100A Chassis Mount TO-244AB
Manufacturer Vishay
Package Bulk
Part Status Obsolete
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Chassis Mount
Package TO-244AB
Case / Package TO-244AB
Family Name 200CNQ040
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 30
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905822-200CNQ040
Ultra Librarian 3D Model Ultra Librarian 200CNQ040 CAD Model

Description

The 200CNQ040 is a TO-244AB package diode array that falls under the category of discrete semiconductor products. It is a product of Vishay and is a part of the 200CNQ040 family.

  • Product: Diode Array
  • Diode Array: 1 Pair Common Cathode
  • Diode Type: Schottky
  • Voltage: 40 V
  • Current: 100A
  • Mounting Type: Chassis Mount
  • Recovery: Fast < 500ns > 200mA (Io)
  • Package: Bulk
  • Package Size: TO-244AB
  • Supply and Demand Status: Balanced
  • ECCN: EAR99
  • HTSUS: 8541.10.0080
  • Status: Obsolete
