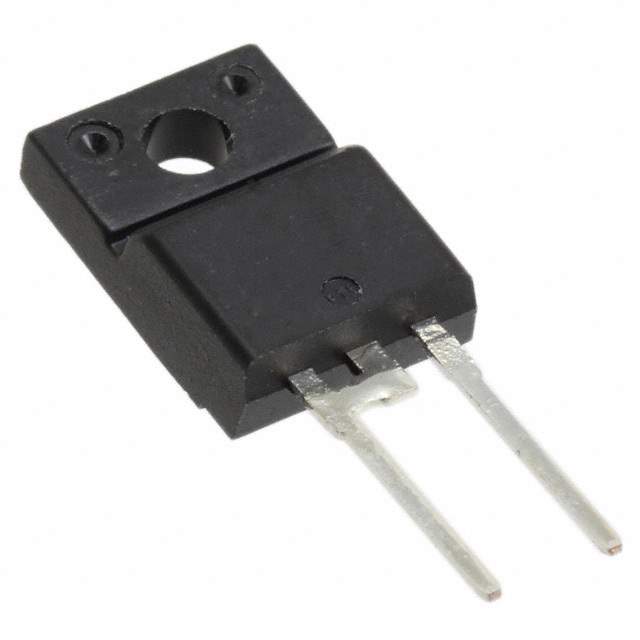

The 20ETS12FPPBF is a single Schottky Rectifier manufactured by Vishay. This rectifier is designed for use in high-frequency power supplies, inverters, and other applications where efficiency and fast switching are essential. It features a low forward voltage drop to minimize power loss and improve overall system efficiency.

Applications

• Switching Power Supplies: Secondary rectification.
• DC-DC Converters: Output rectification stage.
• Freewheeling Diodes: Protection of inductive loads.
• High-Frequency Inverters: Rectification of AC signals.
• Reverse Polarity Protection: Preventing damage from reverse voltage conditions.

Features

• Low Forward Voltage Drop: Minimizes power dissipation for improved efficiency.
• High Surge Current Capability: Withstands large current surges.
• High-Frequency Operation: Suitable for use in high-frequency circuits due to fast switching.
• RoHS Compliant: Meets the Restriction of Hazardous Substances directive.
• Lead-Free Finish: Compliant with lead-free standards.
• Fast Switching Speed: Schottky barrier technology provides rapid switching.

Benefits

• Increased Efficiency: Low forward voltage drop results in less power loss, enhancing system efficiency.
• Enhanced Reliability: High surge current capability protects against transient overcurrent conditions.
• Reduced Heat Dissipation: Lower power dissipation minimizes heat generation.
• Environmentally Friendly: RoHS compliance and lead-free finish reduce environmental impact.
• Improved System Performance: Fast switching speed allows for better performance in high-frequency applications.

Additional Details

The 20ETS12FPPBF has a maximum repetitive peak reverse voltage of 120V and a forward current rating of 20A. It is typically packaged in a TO-220FP package. Key parameters include a low forward voltage (typically 0.6V at rated current), low reverse leakage current, and a wide operating temperature range. The TO-220FP package provides good thermal performance, allowing for efficient heat dissipation. The fast switching characteristics are due to the Schottky barrier construction.
