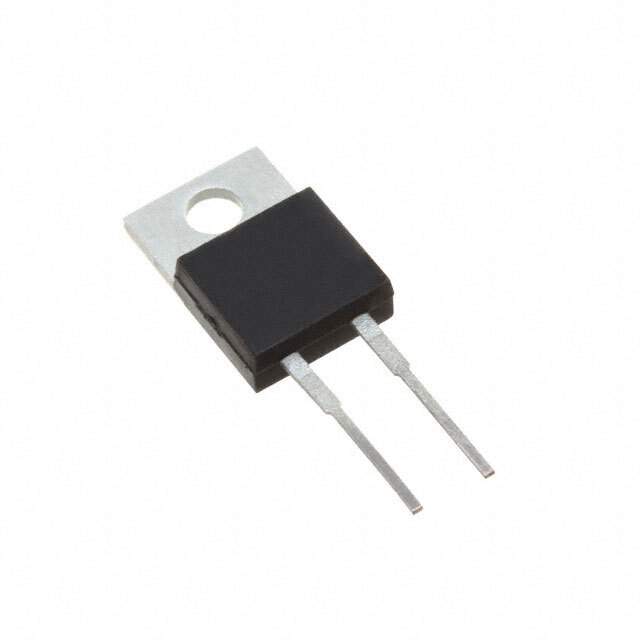

The 30ETH06-M3 is a fast recovery epitaxial diode (FRED) manufactured by Vishay. It is designed for high-efficiency rectification in high-frequency switching applications. This diode features a low forward voltage drop and a soft recovery characteristic, making it suitable for use in power supplies, inverters, and other power electronic circuits.

Applications:

• Switch Mode Power Supplies (SMPS): Used as a rectifier in secondary side rectification.
• Uninterruptible Power Supplies (UPS): Provides fast and efficient rectification for battery charging and power conversion.
• Inverters: Used in inverters for converting DC power to AC power.
• Welding Equipment: Provides rectification in welding power supplies.
• Motor Drives: Used in motor drive circuits for controlling motor speed and torque.

Features:

• Fast Recovery Time: Reduces switching losses and improves efficiency.
• Low Forward Voltage Drop: Minimizes power dissipation and improves efficiency.
• Soft Recovery Characteristic: Reduces voltage spikes and EMI (Electromagnetic Interference).
• High Surge Current Capability: Withstands high current surges without damage.
• Surface Mount Package: Facilitates automated assembly and compact designs.

Benefits:

• High Efficiency: Reduces power consumption and improves overall system efficiency.
• Reduced EMI: Soft recovery characteristic minimizes electromagnetic interference.
• Improved Reliability: High surge current capability enhances reliability.
• Compact Design: Surface mount package enables miniaturization of electronic devices.
• Fast Switching Speed: Enables high-frequency operation and improved performance.

Technical Specifications:

The 30ETH06-M3 typically features a repetitive peak reverse voltage (VRRM) of 600V, a continuous forward current (IF) of 30A, and a forward voltage drop (VF) of around 1.3V at the rated forward current. The reverse recovery time (trr) is typically in the range of tens of nanoseconds. The package is usually a DO-27 or similar surface mount package. It is RoHS compliant. Consult the datasheet for precise values under specified conditions.
