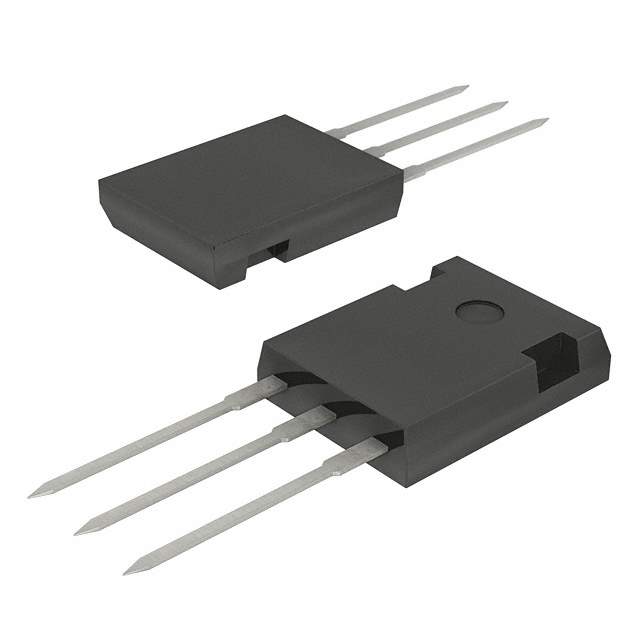

52CPQ030 Real Image
Same model may have multiple batches, images only for reference.

52CPQ030

Part No 52CPQ030
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER | DIODE ARRAY SCHOTTKY 30V TO247AC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 25A
Voltage - Forward (Vf) (Maximum) at If 480mV at 25A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 1.9mA at 30V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package TO-247-3
Supplier Device Package TO-247AC
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1129138-52CPQ030
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 52CPQ030 CAD Model

Description

The 1129138-52CPQ030 is a Schottky diode that is used in discrete semiconductor products.

  • Packaging: tube
  • Manufacturer Pack Quantity: 500
  • Status: obsolete
  • Popularity: medium
  • Supplier: Vishay Semiconductor Diodes Division
  • Alternative Part: IRF
  • Voltage-Forward (Vf): 480mV @ 25A
  • Current-Reverse Leakage @ Vr: 1.9mA @ 30V
  • Suitable for: applications that require fast recovery
