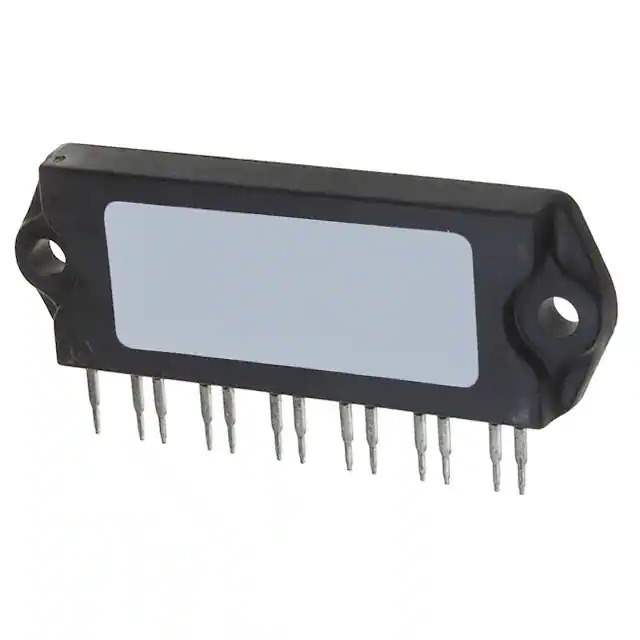

CPV364M4F Real Image
Same model may have multiple batches, images only for reference.

CPV364M4F

Part No CPV364M4F
Manufacturer Vishay
Catalog IGBTs - Modules
Description IGBT MODULE 600V 27A 63W IMS-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr Vishay
Product Status Obsolete
Configuration Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 27 A
Power - Max 63 W
Vce(on) (Max) @ Vge, Ic 1.6V @ 15V, 27A
Current - Collector Cutoff (Max) 250 µA
Input Capacitance (Cies) @ Vce 2.2 nF @ 30 V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 19-SIP (13 Leads), IMS-2
Supplier Device Package IMS-2
Base Product Number CPV364
Standard Package 84 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 580311-CPV364M4F
Ultra Librarian 3D Model Ultra Librarian CPV364M4F CAD Model

Description

The CPV364M4F is an IGBT module falling under the category of IGBTs - IGBT Modules.

  • Configuration: three-phase inverter configuration.
  • Maximum Power: 63W.
  • IGBT Type: does not have a specific IGBT type.
  • Voltage Breakdown: 600V.
  • Maximum Collector Current: 27A.
  • Maximum Collector-Emitter Voltage Drop: 1.6V @ a gate-emitter voltage of 15V and a collector current of 27A.
  • Input Capacitance: 2.2nF @ a voltage of 30V.
  • Mounting Type: designed for through-hole mounting type.
  • Package: comes in a 19-SIP package.
  • Suitability: a reliable and efficient IGBT module suitable for various power applications.
